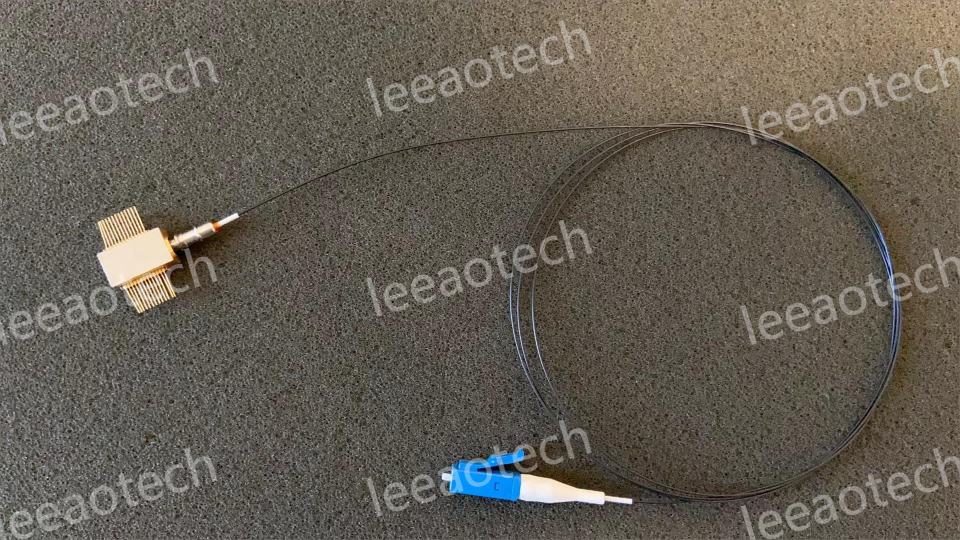

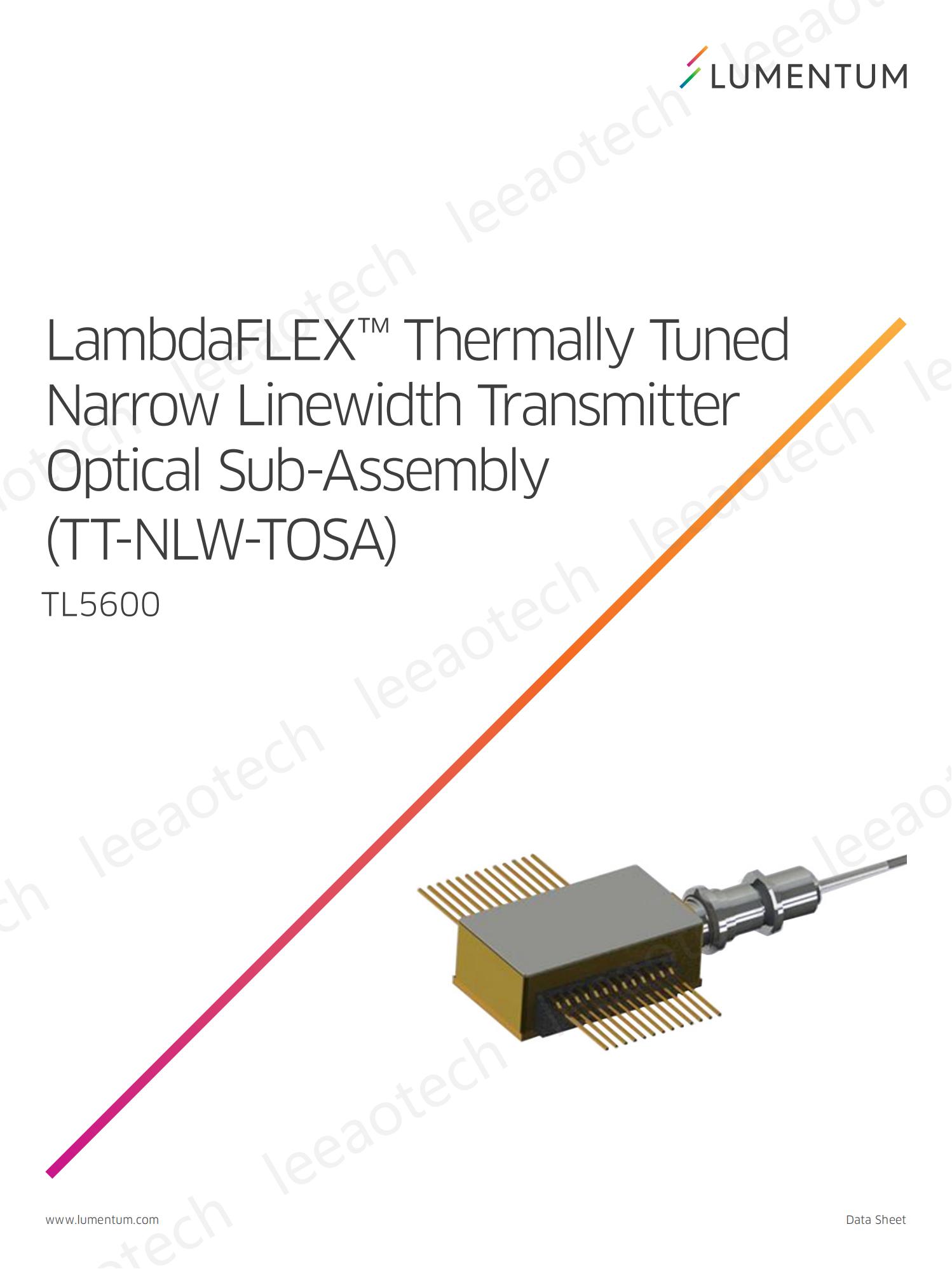

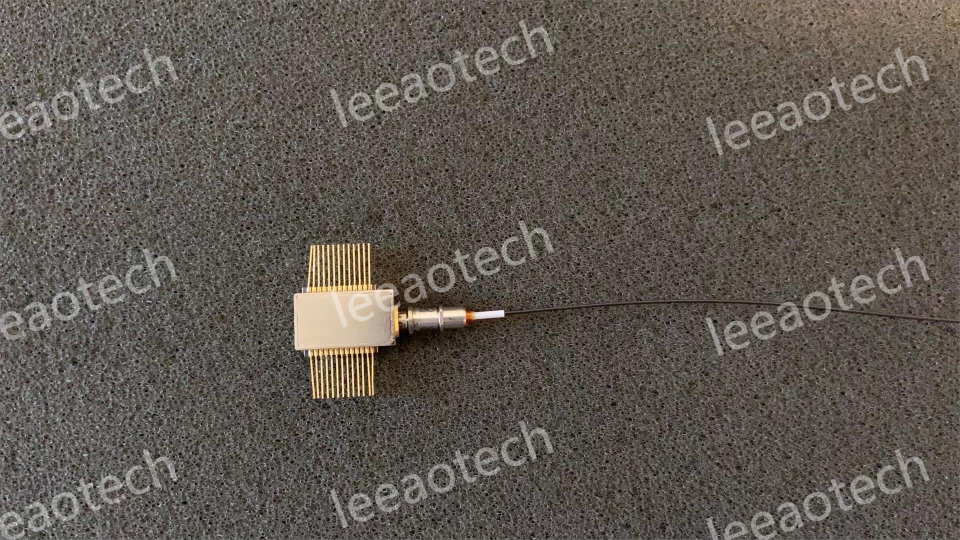

Lumentum TL5600 CW TOSA 100kHz Narrow Linewidth 17dBm Optical Fiber Sensing
Lumentum TL5600 CW TOSA 100kHz Narrow Linewidth 17dBm Optical Fiber Sensing
Lumentum TL5600 CW TOSA 100kHz Narrow Linewidth 17dBm Optical Fiber Sensing
Key Features
• Full C-band tunable source (1527 -1568 nm) based on OIF ITLA
footprint
• High power +17.0 dBm nominal EOL
• Variable output power range 9 dB
• Electronic shutter for dark tuning
• Low power dissipation, 3.5 W EOL
• Narrow line-width, 100 kHz maximum
• Excellent SMSR >40 dB
• Low RIN
• Un-shuttered frequency fine tuning capability ±10 GHz
• Case operating temperature range -5°C to +75°C
• RoHS compliant 6/6
Applications
• Coherent optical communication systems
• Long haul/ultra-long haul
• Regional metro
• Test and measurement
