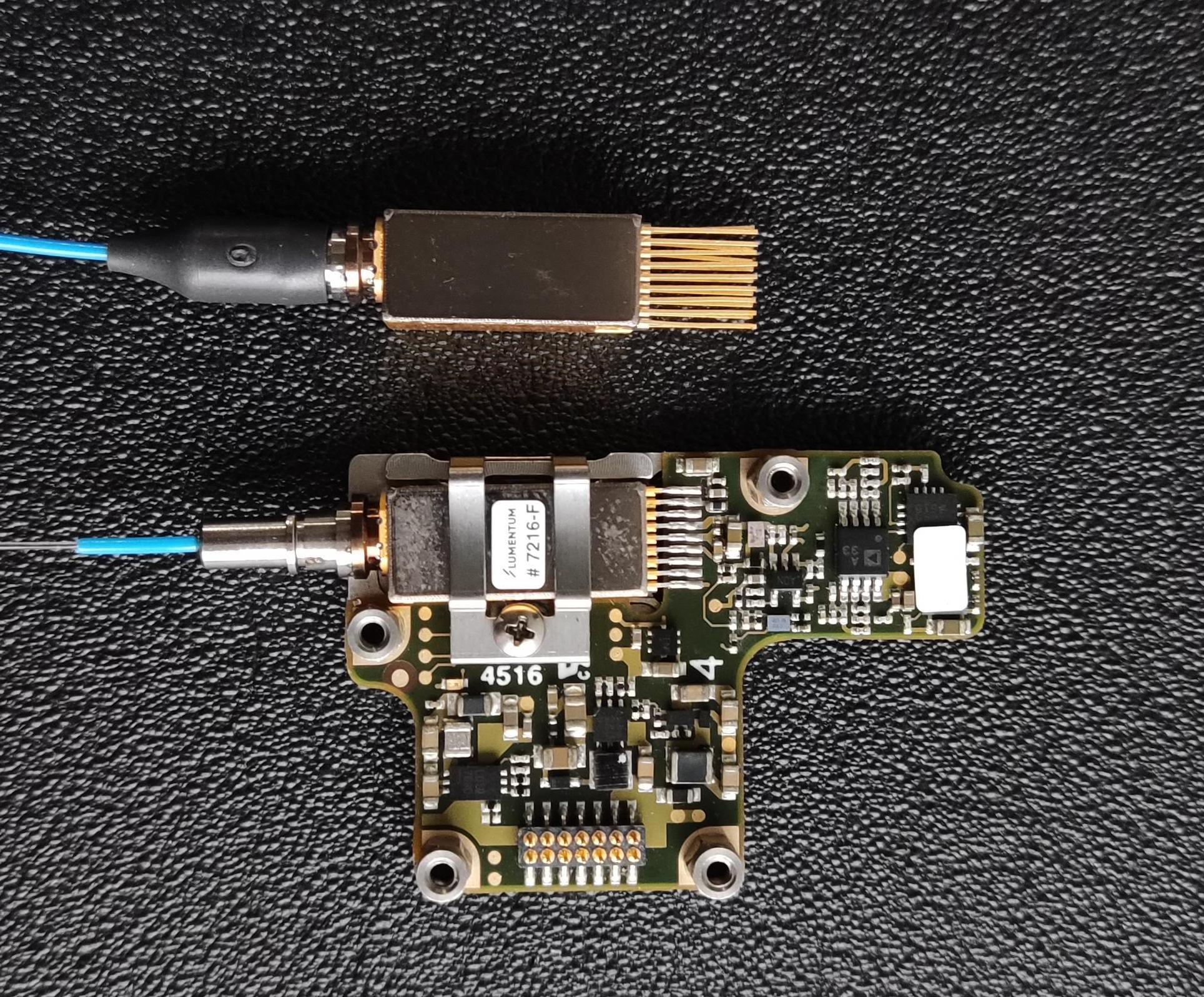

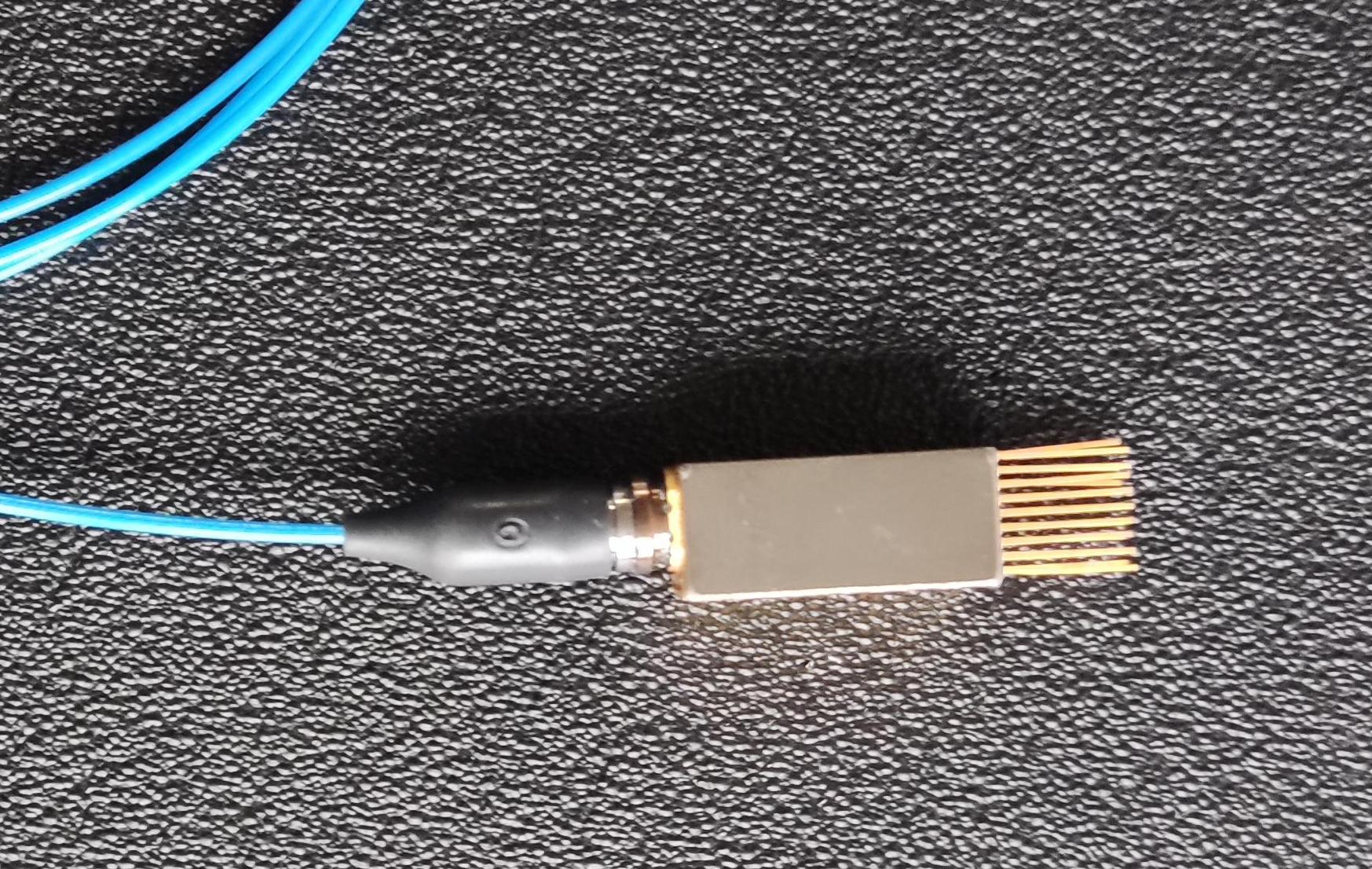

LUMENTUM Tunable Laser Bare Die 7215-F TOSA C Band 1525-1569nm 300KHZ 16dBm

Tunable Laser Bare Die for Integration. The data for the TL5600 may be used as a reference.

Key Features
• Full C-band tunable source (1527 -1568 nm) based on OIF ITLA
footprint
• High power +17.0 dBm nominal EOL
• Variable output power range 9 dB
• Electronic shutter for dark tuning
• Low power dissipation, 3.5 W EOL
• Excellent SMSR >40 dB
• Low RIN
• Un-shuttered frequency fine tuning capability ±10 GHz
• Case operating temperature range -5°C to +75°C
• RoHS compliant 6/6
Applications
• Coherent optical communication systems
• Long haul/ultra-long haul
• Regional metro
• Test and measurement
