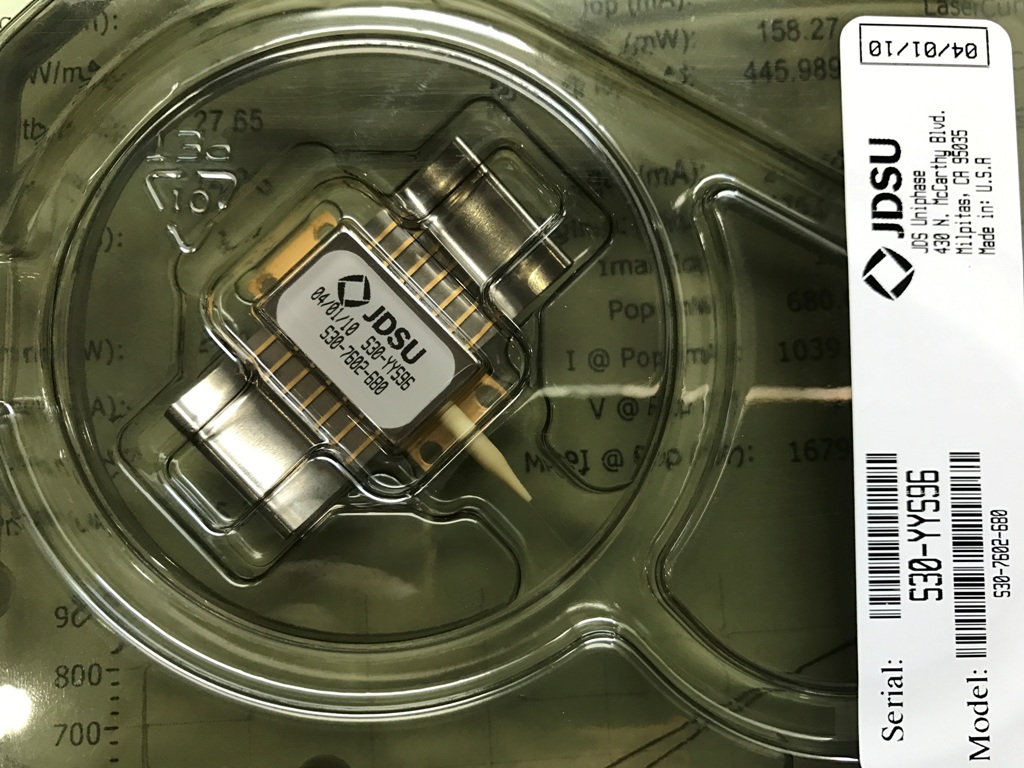

JDSU 980nm Pump Laser Module 680-750mW 14 Pin Fiber Bragg Grating FBG S30 Series

Key Features

• Operating power range from 400-720 mW
• 25°C internal temperature, compatible with legacy
  temperature control
• Low-profile, 14-PIN butterfly package
• Fiber Bragg grating stabilization
• Wavelength selection available
• Integrated thermoelectric cooler, thermistor, and monitor diode
• High dynamic range
• Excellent low power stability

Applications
• Dense wavelength division multiplexing (DWDM)

  EDFAs for small package designs
• High bit-rate, high channel-count EDFAs
• CATV distribution

Compliance
• Telcordia GR-468-CORE

The JDSU S30 Series pump laser module leverages a revolutionary design and
lean manufacturing processes to significantly advance the performance and
scalability of 980 nm pumps. The module meets the stringent requirements of the
telecommunications industry, including Telcordia GR-468-CORE for hermetic
980 nm pump modules.

The S30 Series pump module, which uses fiber Bragg grating stabilization to
lock the emission wavelength, provides a noise-free, narrowband spectrum, even
under changes in temperature, drive current, and optical feedback. Wavelength
selection is available for applications requiring the highest performance in
spectrum control with the highest power available.
