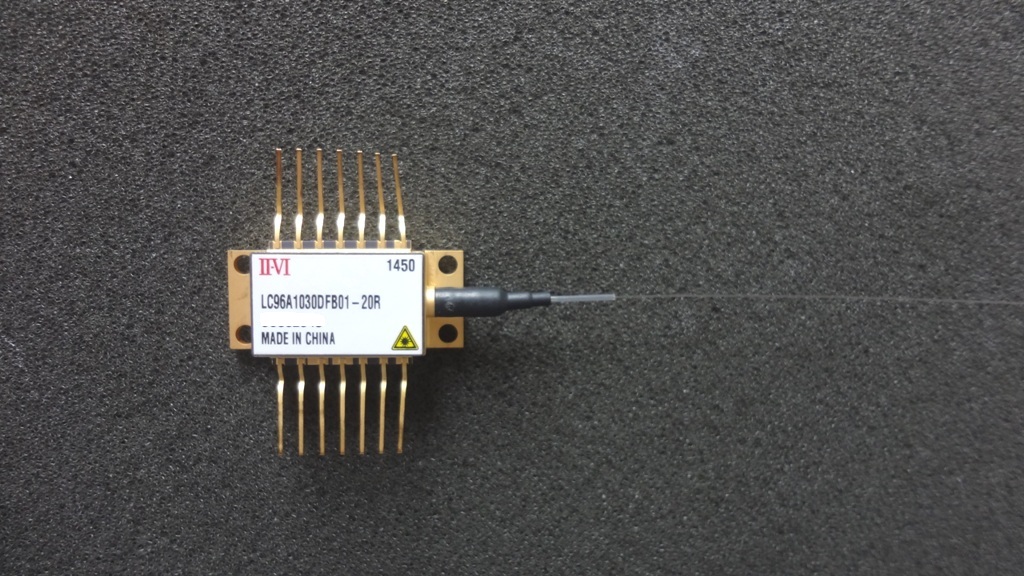

Oclaro 1025nm-1035nm High Power Pump Laser Diode Module 400mW CW LC96A1030-20R

Wavelength: 1025nm to 1035nm

The Oclaro LC96A10xx-20R high power laser module has been designed as a light source for pulsed fiber lasers and

CW applications that require 10xx nm single mode light. Processes and techniques of coupling the fiber to

the laser allow high output powers that are very stable with both time and temperature.

Devices are available with kink free output powers to 400mW CW.

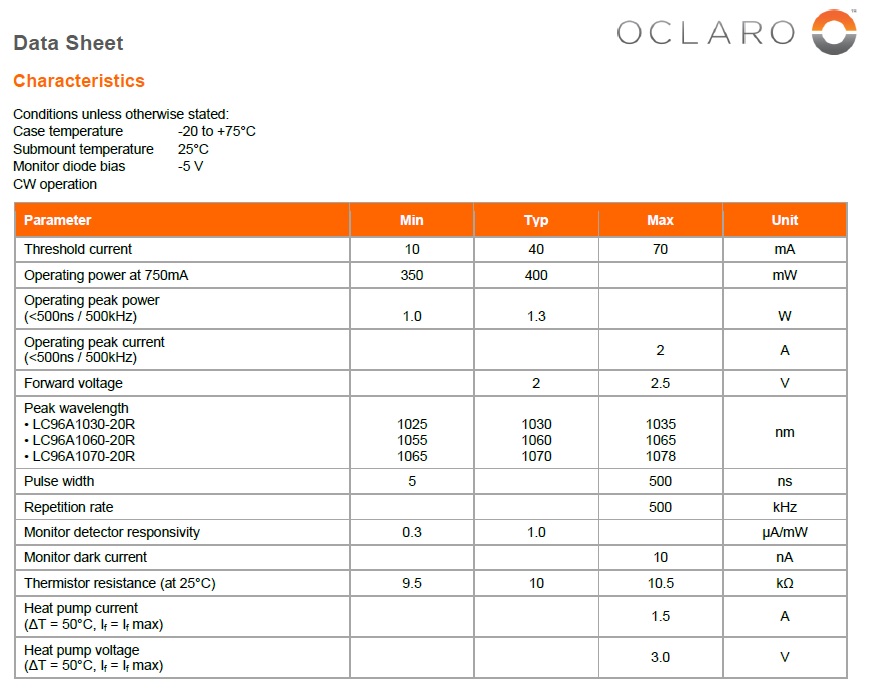

Data Sheet

Characteristics

Conditions unless otherwise stated:

Case temperature: -20 to +75°C

Submount temperature: 25°C

Monitor diode bias: -5 V

CW operation
