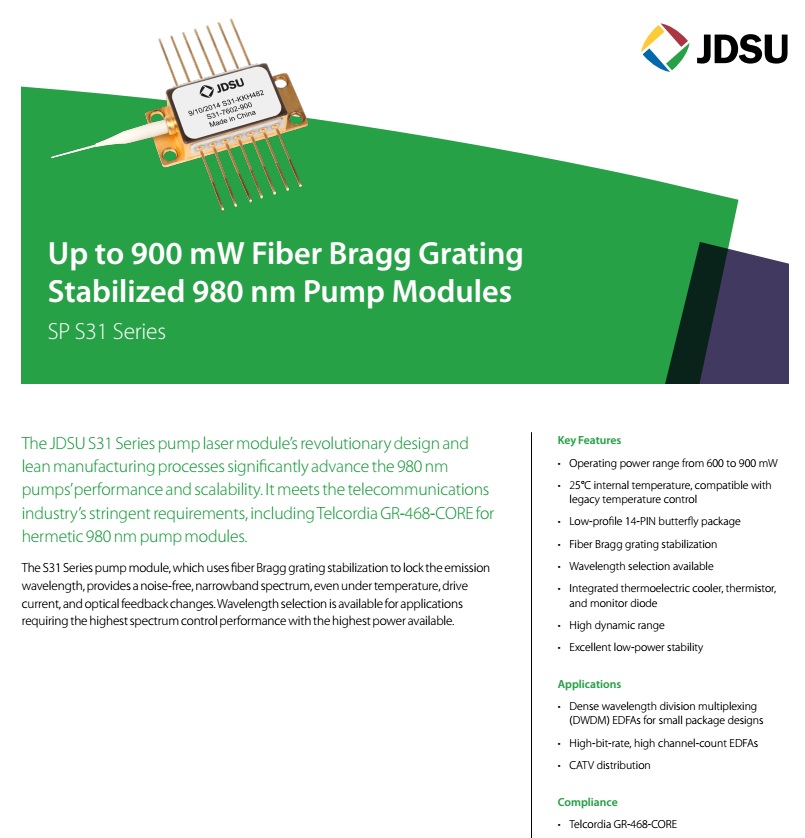

JDSU 980nm Pump Laser Module Up to 900mW Fiber Bragg Grating FBG S31 Series

Key Features
• Operating power range from 600 to 900 mW
• 25°C internal temperature, compatible with legacy temperature control
• Low-profle 14-PIN butterfly package
• Fiber Bragg grating stabilization
• Wavelength selection available
• Integrated thermoelectric cooler, thermistor, and monitor diode
• High dynamic range
• Excellent low-power stability

Applications
• Dense wavelength division multiplexing (DWDM) EDFAs for

  small package designs
• High-bit-rate, high channel-count EDFAs
• CATV distribution

Compliance
• Telcordia GR-468-CORE
