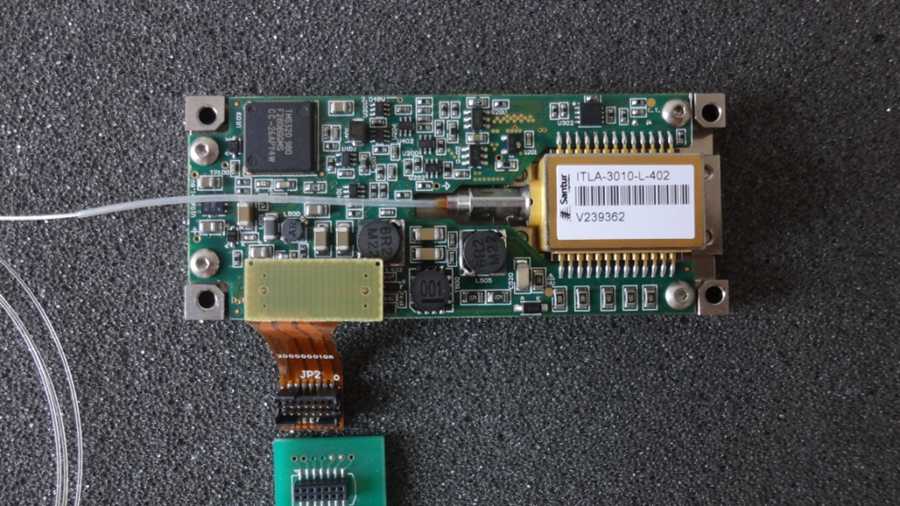

Santur L-Band DWDM System MSA-Compliant Tunable laser Butterfly ITLA-3010-L-402

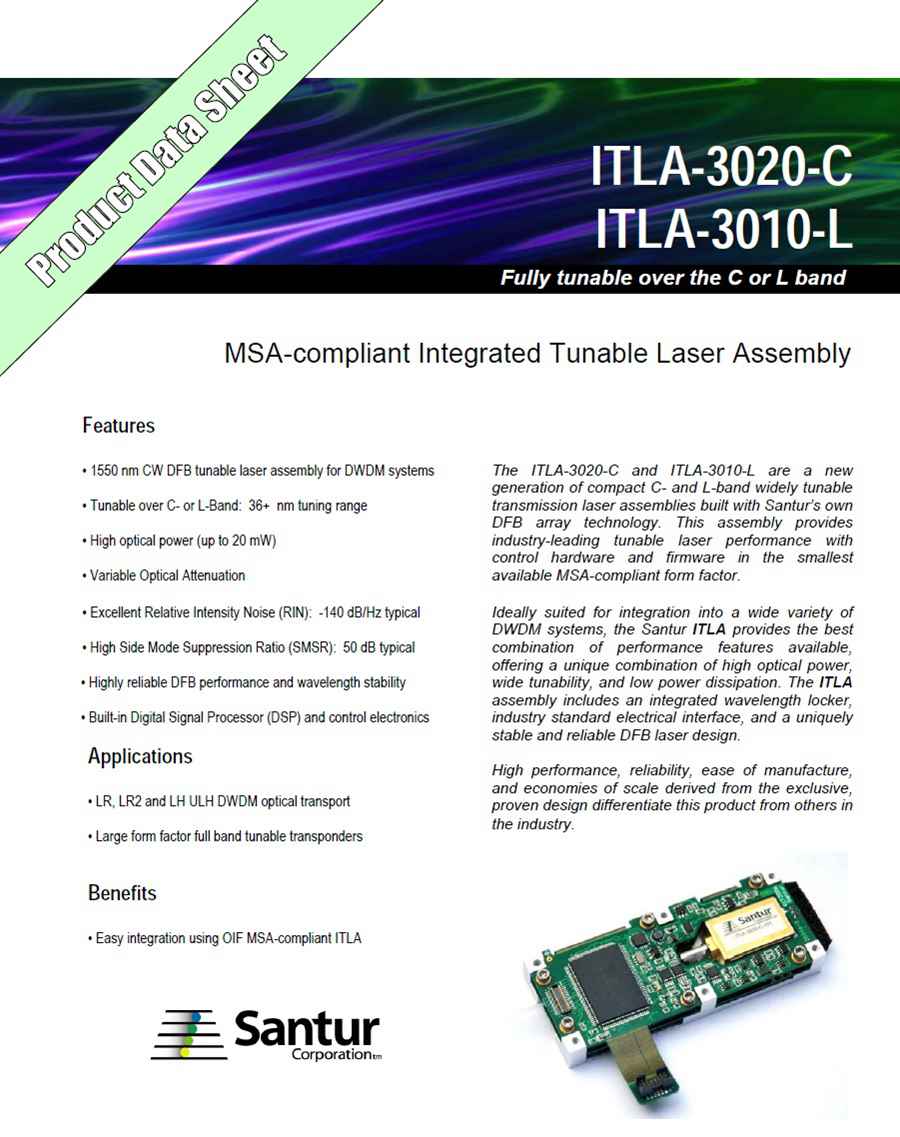

The ITLA-3020-C and ITLA-3010-L are a new generation of compact C- and L-band widely tunable transmission laser assemblies built with Santur’s own DFB array technology.

This assembly provides industry-leading tunable laser performance with control hardware and firmware in the smallest available MSA-compliant form factor.

Ideally suited for integration into a wide variety of DWDM systems, the Santur ITLA provides the best combination of performance features available, offering a unique combination of high optical power, wide tunability, and low power dissipation.

The ITLA assembly includes an integrated wavelength locker, industry standard electrical interface, and a uniquely stable and reliable DFB laser design.

High performance, reliability, ease of manufacture, and economies of scale derived from the exclusive, proven design differentiate this product from others in the industry.
