Oclaro CW C Band Integrable Tunable Laser ITLA 89CH 7-13dBm FC/APC TL5000 Series

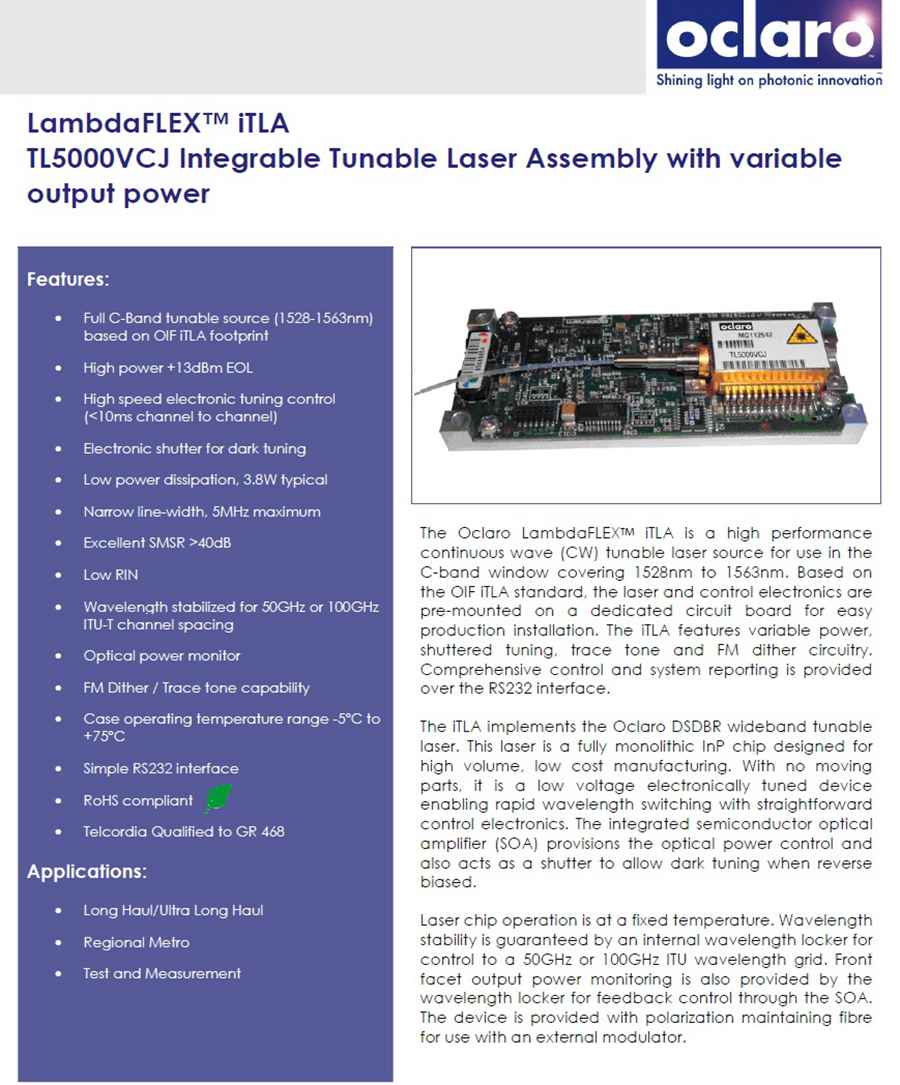

The Oclaro LambdaFLEXTM iTLA is a high performance continuous wave (CW) tunable laser source for use in the C-band window

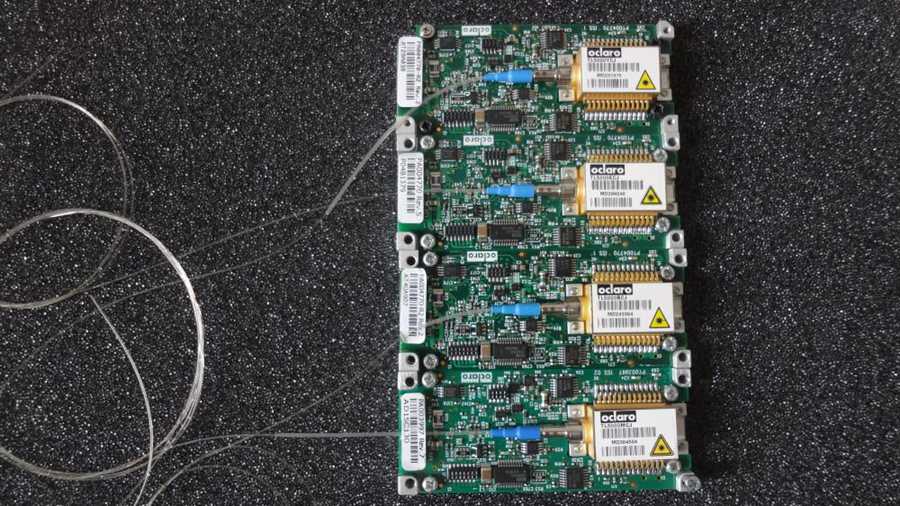

covering 1528nm to 1563nm. Based on the OIF iTLA standard, the laser and control electronics are pre-mounted on a dedicated

circuit board for easy production installation. The iTLA features variable power, shuttered tuning, trace tone and FM dither circuitry. Comprehensive control and system reporting is provided over the RS232 interface.

The iTLA implements the Oclaro DSDBR wideband tunable laser. This laser is a fully monolithic InP chip designed for high volume,

low cost manufacturing. With no moving parts, it is a low voltage electronically tuned device enabling rapid wavelength switching

with straightforward control electronics. The integrated semiconductor optical amplifier (SOA) provisions the optical power control

and also acts as a shutter to allow dark tuning when reverse biased.

Laser chip operation is at a fixed temperature. Wavelength stability is guaranteed by an internal wavelength locker for control to a 50GHz or 100GHz ITU wavelength grid. Front facet output power monitoring is also provided by the wavelength locker for

feedback control through the SOA. The device is provided with polarization maintaining fibre for use with an external modulator.
