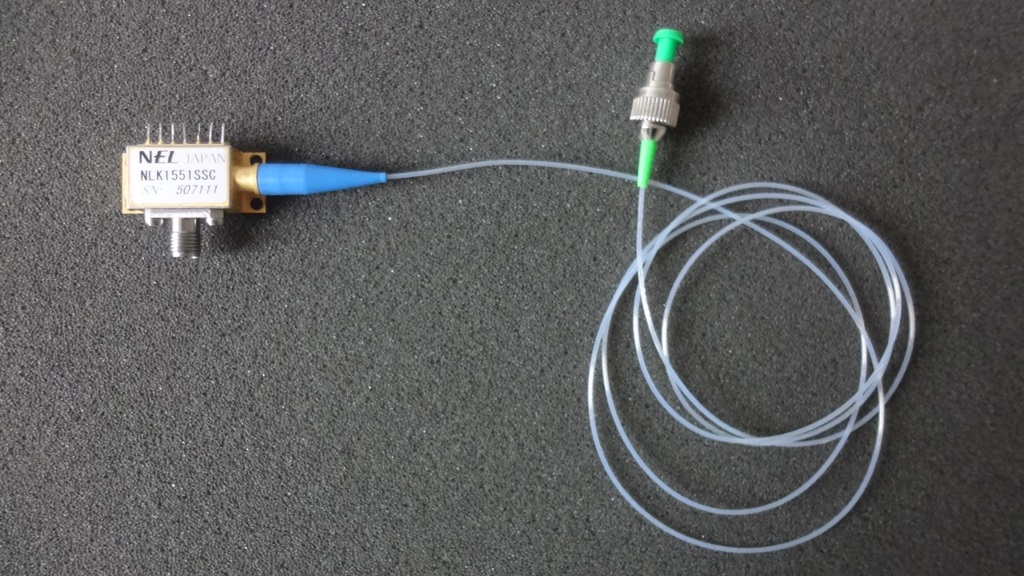

NEL (NTT) 10Gbps DML Laser, NLK1551SSC, 1550nm, Direct Modulated Laser, FC/APC Connector

10Gbps DML DFB Laser, NEL (NTT) NLK1551SSC, 1550nm, Direct Modulated Laser

The NEL NLK1551SSC directly-modulated laser (DML) is a cost-effective solution for 10Gb/s

digital transmission of up to 50km using traditional intra-city fiber links.

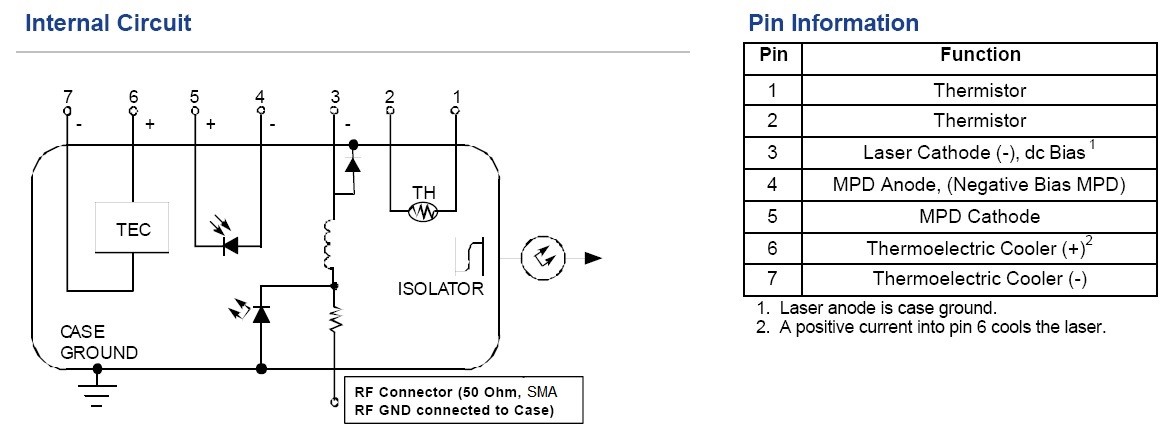

The package contains a high-speed DFB laser chip, thermoelectric cooler, thermistor,

optical isolator, and a rear-facet monitor photodiode for external optical power control.

Applications

• SONET/SDH low-cost metro applications
• High-speed data communications
• DWDM equipment drop-side applications

Features

• Direct-modulated 1550 nm laser module characterized for use in 10Gbps operations up to 40km
• Average optical output power, 1mW min.
• SMA female RF connector
• Polarization maintaining fiber pigtail
• High relaxation frequency at low bias
• Temperature stabilized with internal thermoelectric cooler (TEC), enabling operation within a wide temperature range of –40 °C to +80 ° C
• Hermetically sealed optics, isolator on TEC
