Lumentum Micro-Integrated Coherent Receiver (μICR) up to 32Gbaud CR6102A

Lumentum Micro-Integrated Coherent Receiver (μICR) up to 32 Gbaud Symbol Rates
CR6102A

The Lumentum micro coherent receiver module is designed to meet mechanical and performance requirements of the ICR for CFP2 Coherent optics (OIF Implementation Agreement Proposal - OIF-DPC-MRX-01.0).

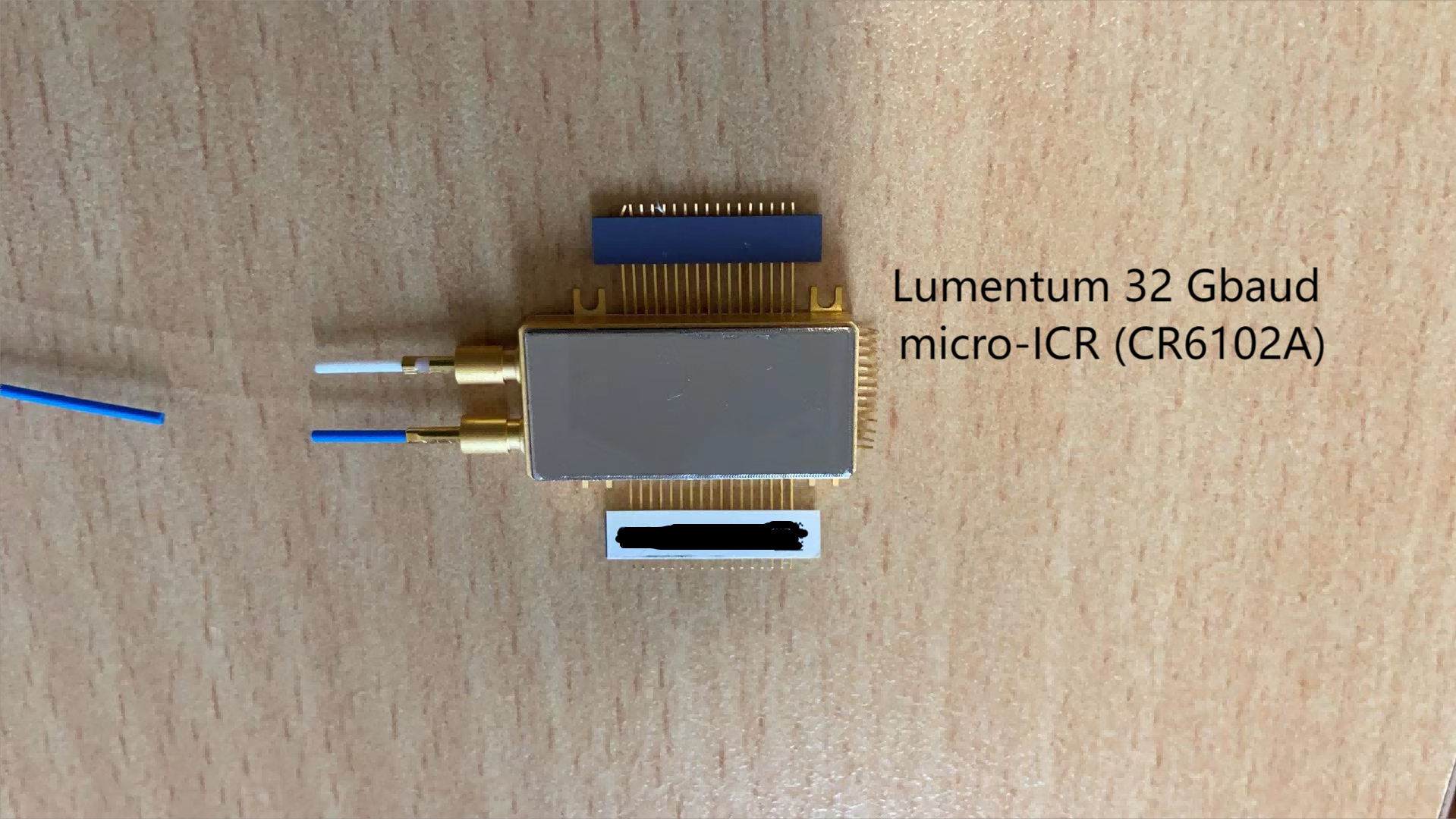

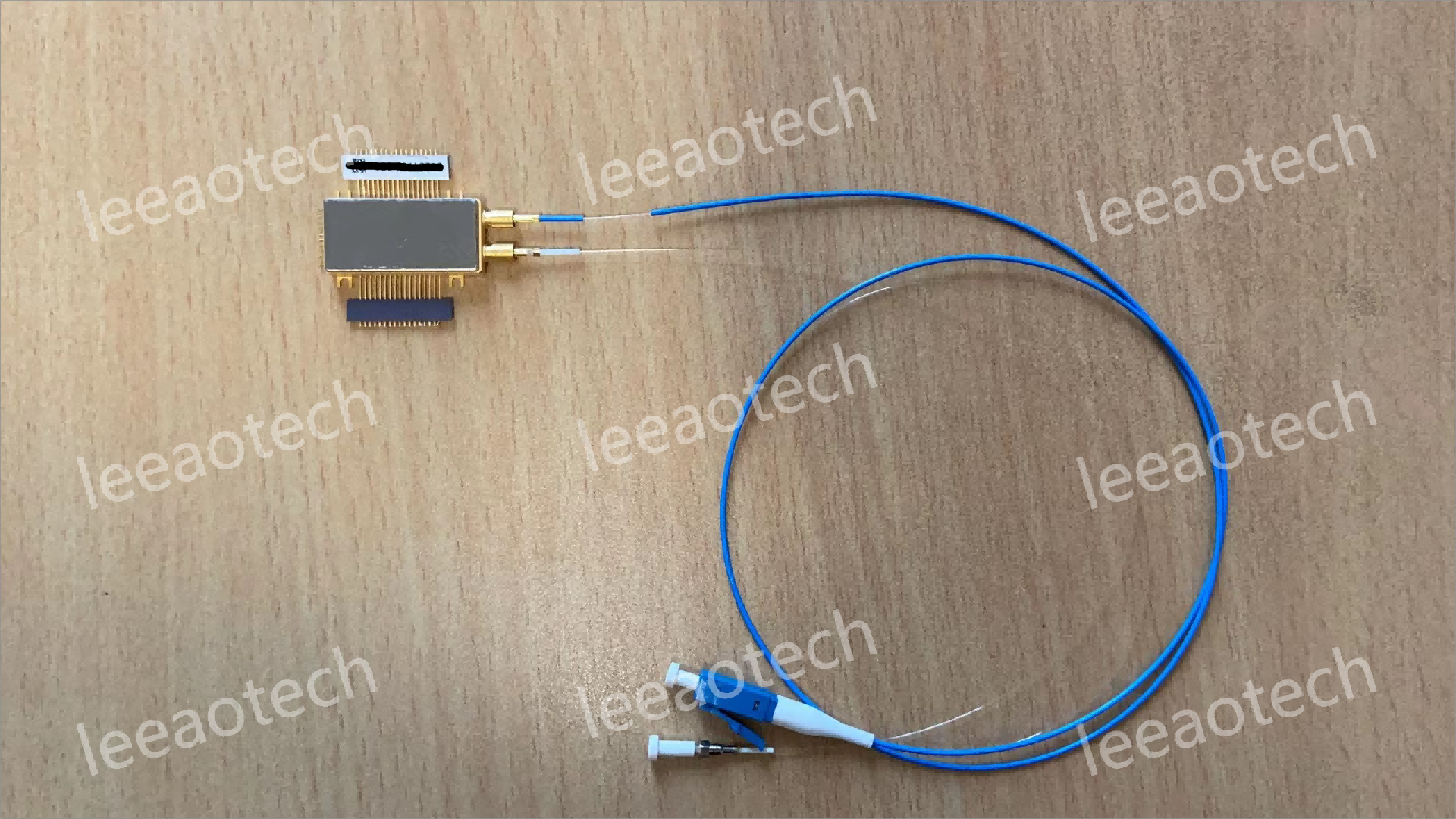

The gold box has two optical input fibers, corresponding to signal and common local oscillator (LO) inputs.

A variable optical attenuator (VOA) and monitor photodiode (MPD) are included in the signal path to enable the incoming power level to be monitored and adjusted.

The polarized light is separated internally via PBS to recover two orthogonal polarizations that are steered to two 90° optical hybrid phase mixers. The hybrid beats the transmit signal with the local oscillator to allow the appropriate wavelength signal to propagate.

Each of the mixer outputs is connected with photodetector pairs that are interconnected to four linear transimpedance amplifiers (TIAs) that perform O-to-E conversion for downstream signal processing.

The transimpedance amplifiers can operate in auto or manual mode, with adjustable output or gain (configurable via MDIO), and feature shutdown and bandwidth adjustment controls.

Device packaging represents SMT interfaces on 0.8 mm pitch with corner mounting points to allow attachment to host PCB.

Features
■Supports coherent DP-QPSK & DP-16QAM modulation formats up to 32 GBaud symbol rates
■Mechanically compliant with the micro-ICR OIF implementation agreement (OIF-DPC-MRX-01.0)
■Integrated VOA, signal MPD and power adjustment capability
■Adjustable linear TIAs for gain and bandwidth control
■Low power dissipation typically <1.1 W
■Wide operating case temperature range -5°C to 85°C (short term)

Applications
■40G, 100G, and 200G using DP-QPSK and DP-16QAM for metro, long, ultra-long haul and DCI

Compliance
■Telcordia GR-468-CORE qualifiedRoHS 6/6
