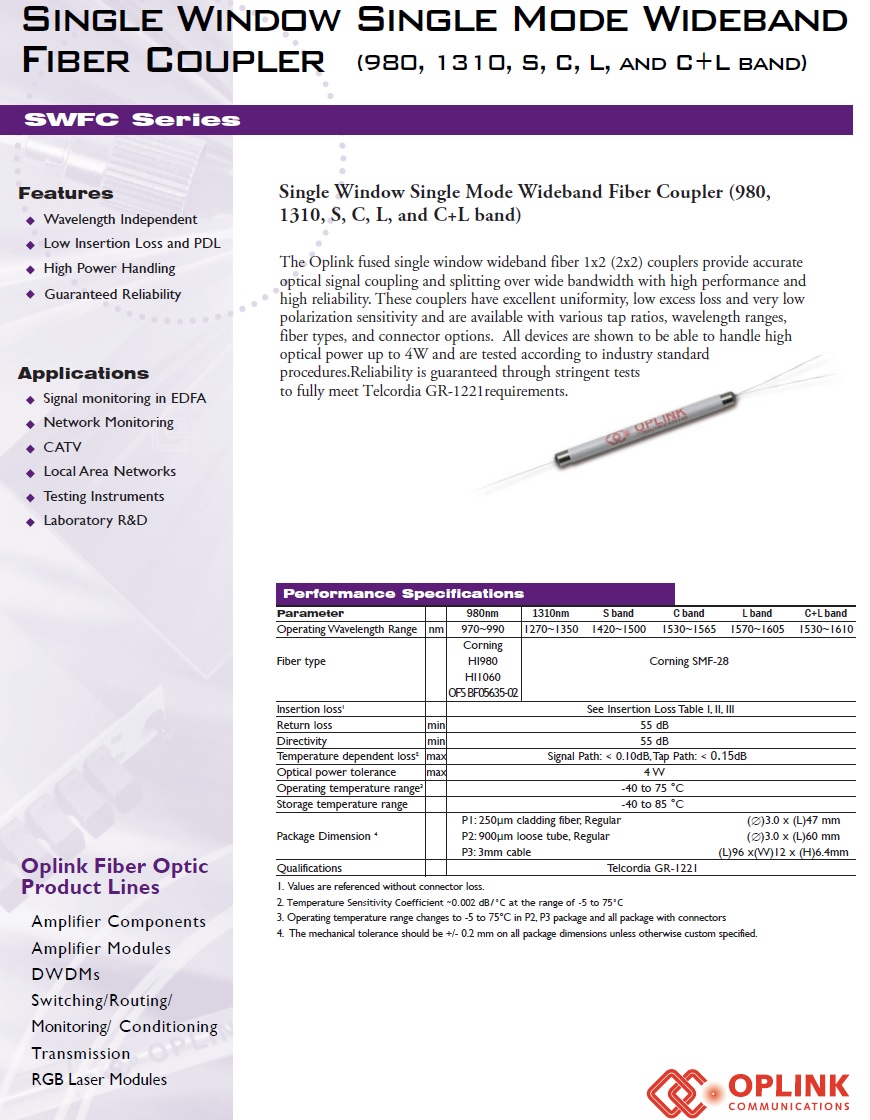

OPLINK Single Window Single Mode Wideband Fiber Coupler 1528-1565nm SWFC Series

Single Window Single Mode Wideband Fiber Coupler (980,
1310, S, C, L, and C+L band)

Features
Wavelength Independent
Low Insertion Loss and PDL
High Power Handling
Guaranteed Reliability

Applications
Signal monitoring in EDFA
Network Monitoring
CATV
Local Area Networks
Testing Instruments
Laboratory R&D

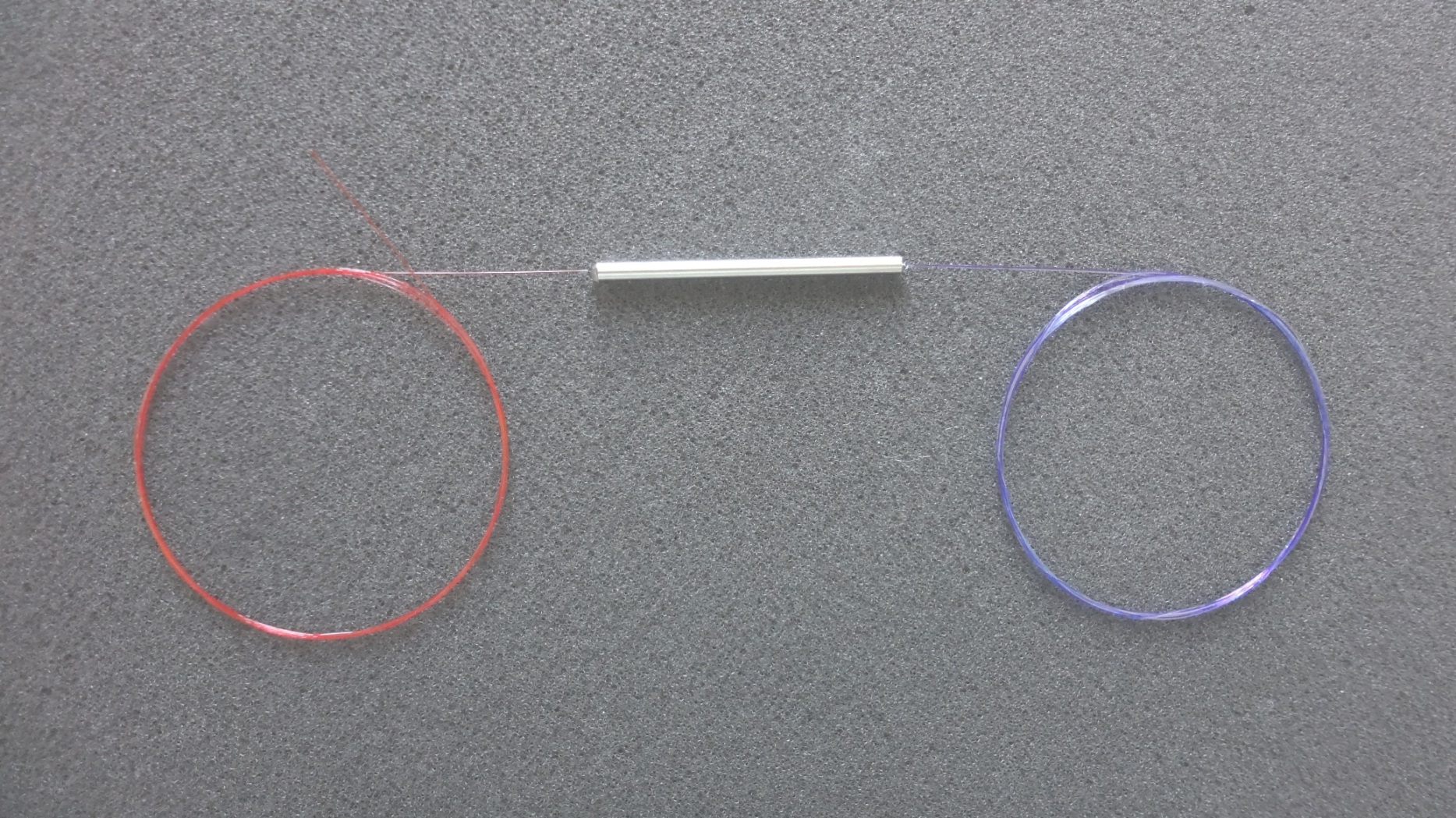

The Oplink fused single window wideband fiber 1x2 (2x2) couplers provide accurate
optical signal coupling and splitting over wide bandwidth with high performance and
high reliability. These couplers have excellent uniformity, low excess loss and very low
polarization sensitivity and are available with various tap ratios, wavelength ranges,
fiber types, and connector options. All devices are shown to be able to handle high
optical power up to 4W and are tested according to industry standard
procedures.Reliability is guaranteed through stringent tests
to fully meet Telcordia GR-1221requirements.
