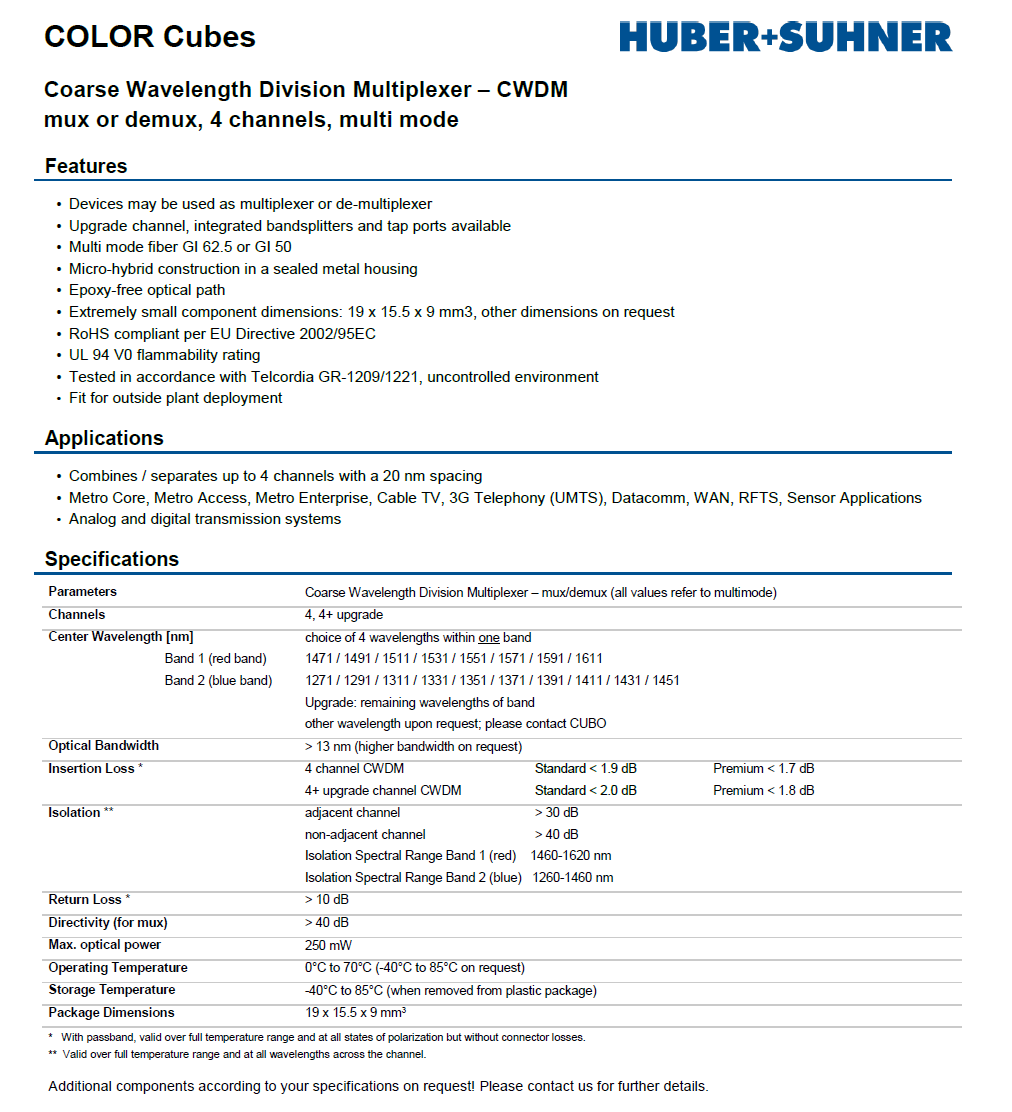

HUBER+SUHNER CWDM MUX OR DEMUX, 4 CHANNELS, MULTI MODE

Coarse Wavelength Division Multiplexer – CWDM
mux or demux, 4 channels, multi mode

FEATURES
·Devices may be used as multiplexer or de-multiplexer
·Upgrade channel, integrated bandsplitters and tap ports available
·Multi mode fiber GI 62.5 or GI 50
·Micro-hybrid construction in a sealed metal housing
·Epoxy-free optical path
·Extremely small component dimensions: 19 x 15.5 x 9 mm3, other dimensions on request
·RoHS/REACh compliant according to the latest EU Directives
·UL 94 V0 flammability rating
·Tested in accordance with Telcordia GR-1209/1221, uncontrolled environment
·Fit for outside plant deployment

APPLICATIONS
·Combines / separates up to 4 channels with a 20 nm spacing
·Metro Core, Metro Access, Metro Enterprise, Cable TV, 3G Telephony (UMTS), Datacomm, WAN, RFTS, Sensor Applications

·analogue and digital transmission systems
