Sercalo MEMS Fast Fiber Optic 1x2 Switch 0.5 dB insertion loss SW-1x2

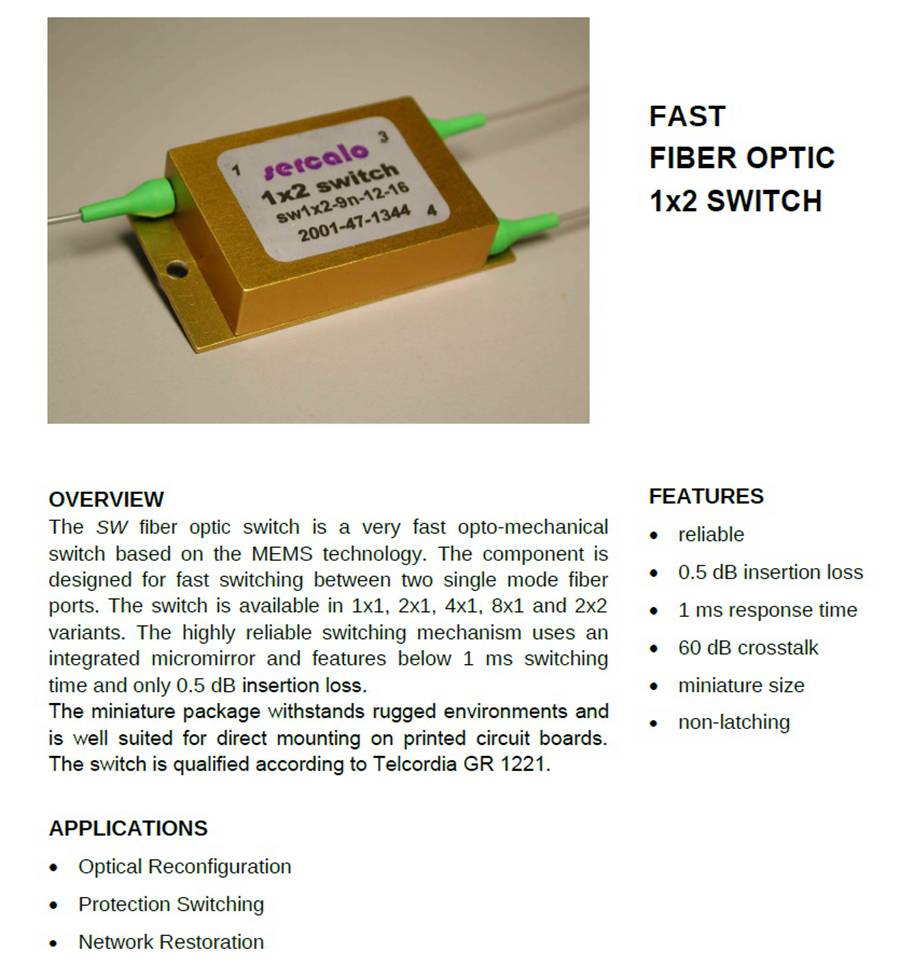

OVERVIEW

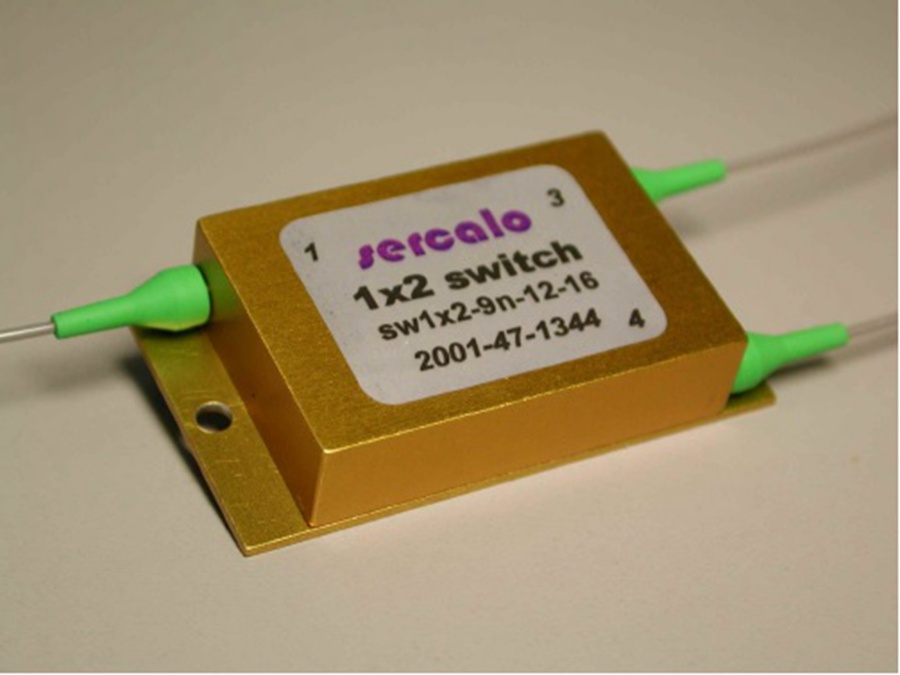

The SW fiber optic switch is a very fast opto-mechanical

switch based on the MEMS technology. The component is

designed for fast switching between two single mode fiber

ports. The switch is available in 1x1, 2x1, 4x1, 8x1 and 2x2

variants. The highly reliable switching mechanism uses an

integrated micromirror and features below 1 ms switching

time and only 0.5 dB insertion loss.

The miniature package withstands rugged environments and

is well suited for direct mounting on printed circuit boards.

The switch is qualified according to Telcordia GR 1221.
