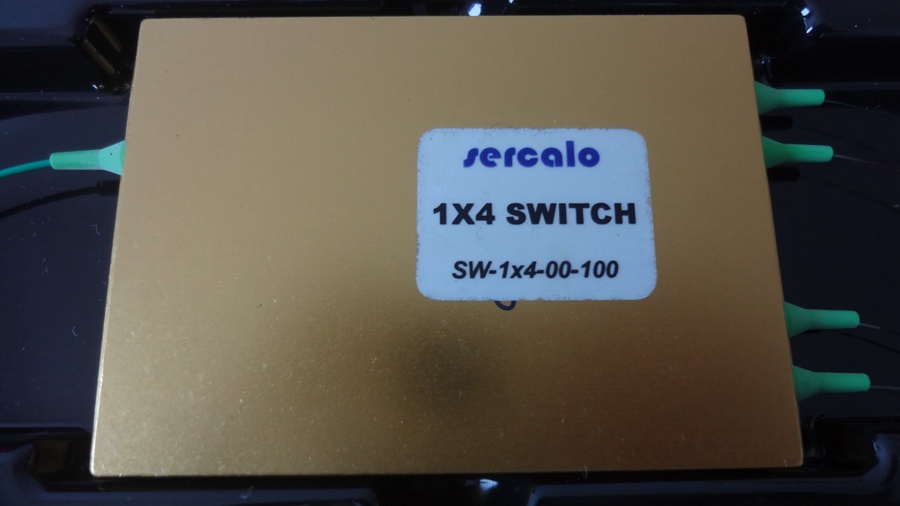

Sercalo Fast Fiber Optic 1x4 Switch 1240 nm to 1600 nm SW-1x4-00-100

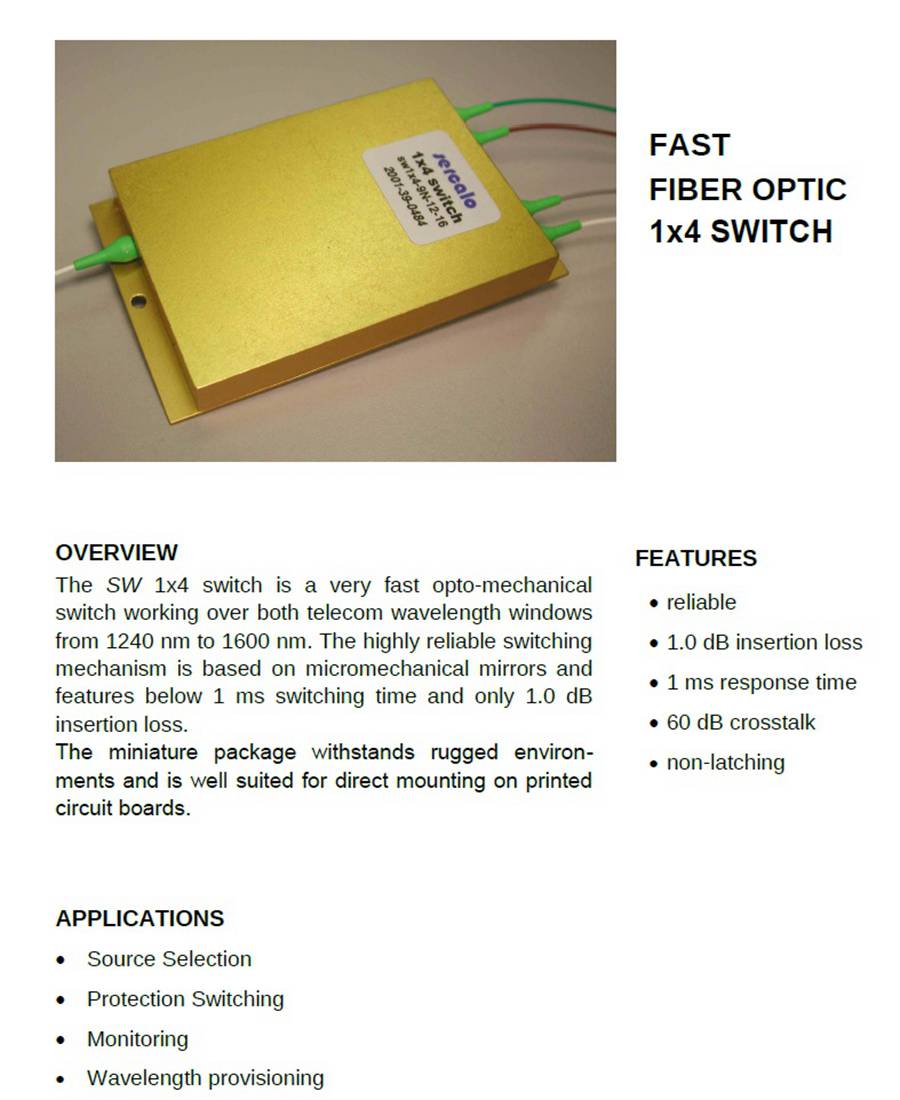

OVERVIEW

The SW 1x4 switch is a very fast opto-mechanical

switch working over both telecom wavelength windows

from 1240 nm to 1600 nm. The highly reliable switching

mechanism is based on micromechanical mirrors and

features below 1 ms switching time and only 1.0 dB

insertion loss.

The miniature package withstands rugged environments

and is well suited for direct mounting on printed

circuit boards.
