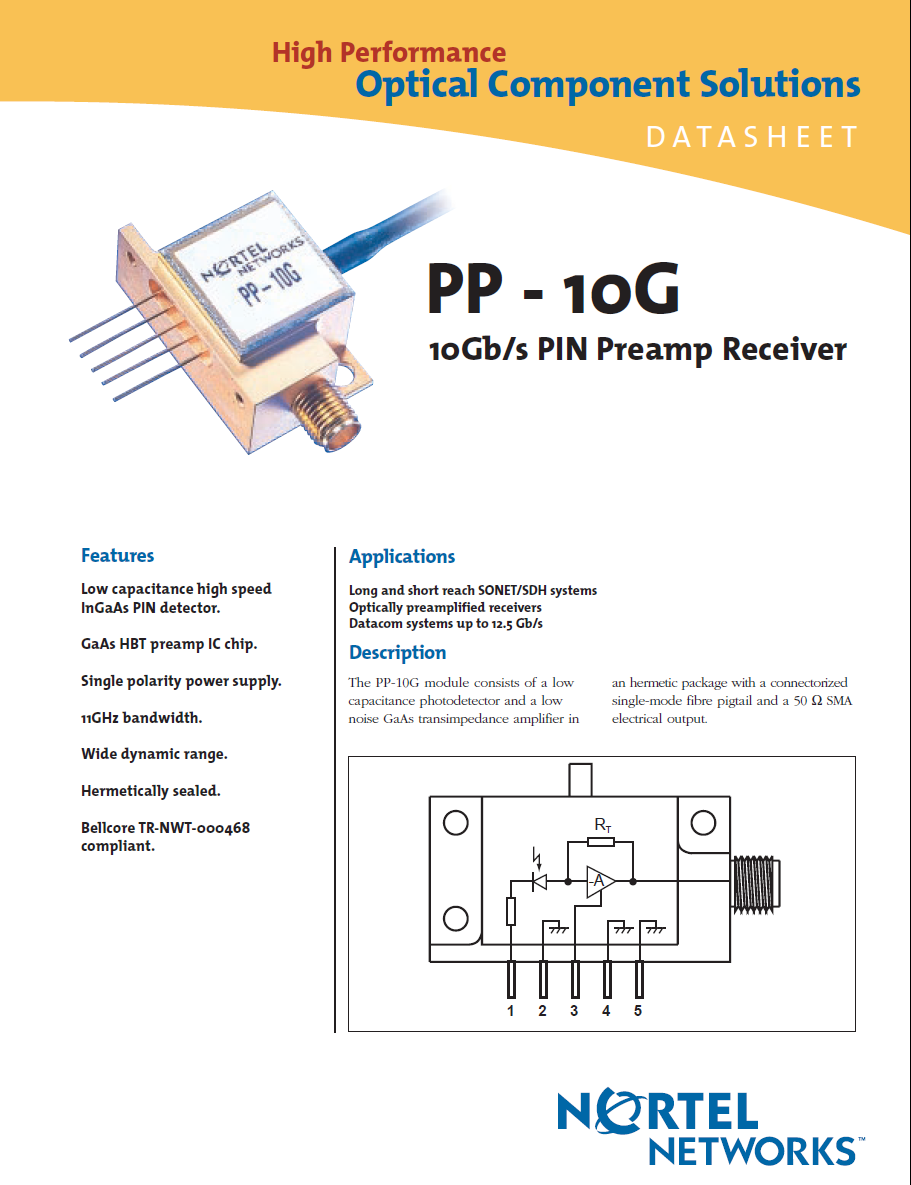

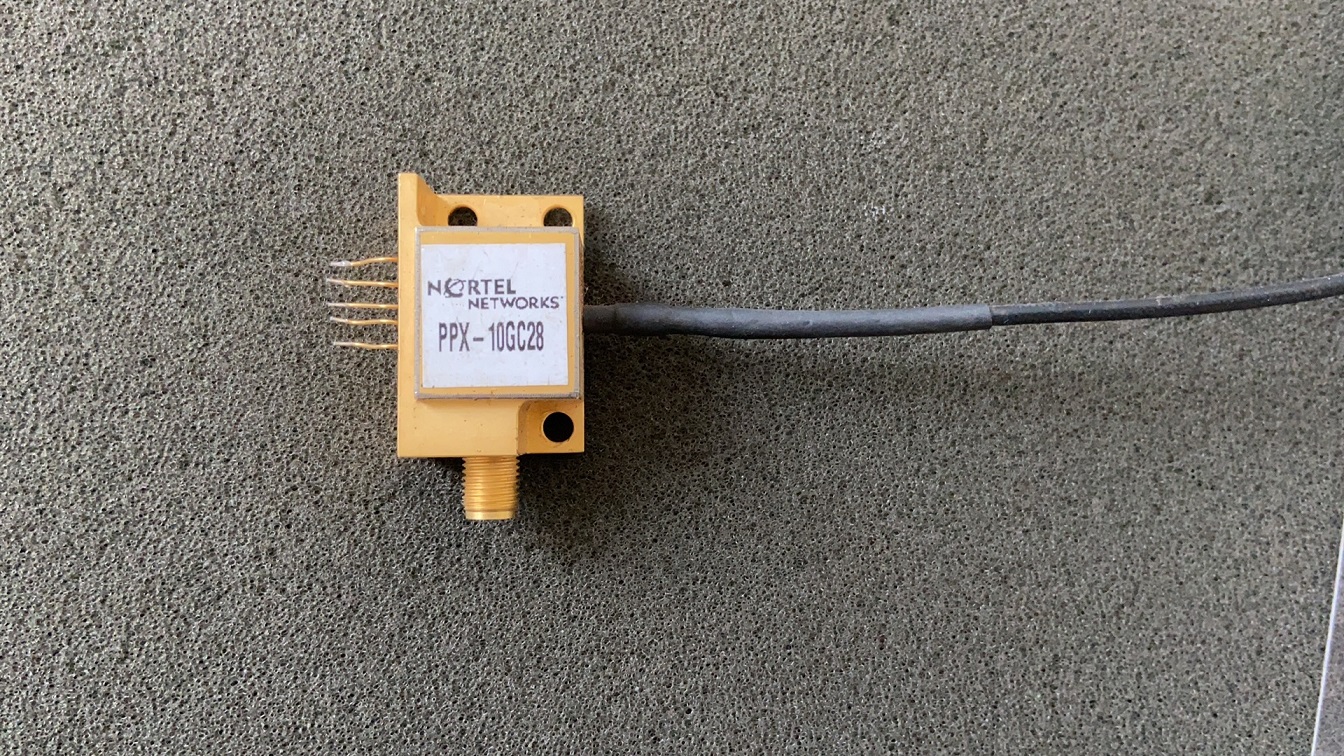

NORTEL 10Gb/s PIN Preamp Receiver PP-10G module With Photodetector And Amplifier

Applications
Long and short reach SONET/SDH systems
Optically preamplified receivers
Datacom systems up to 12.5 Gb/s

Description
The PP-10G module consists of a low
capacitance photodetector and a low
noise GaAs transimpedance amplifier in
an hermetic package with a connectorized
single-mode fibre pigtail and a 50 Ω SMA
electrical output
