PICOMETRIX PT-40A 1550nn 38GHz Bandwidth Gain 140V/W PIN/TIA Receiver
PICOMETRIX PT-40A 1550nn 38GHz Bandwidth Gain 140V/W PIN/TIA Receiver
PICOMETRIX PT-40A 1550nn 38GHz Bandwidth Gain 140V/W PIN/TIA Receiver

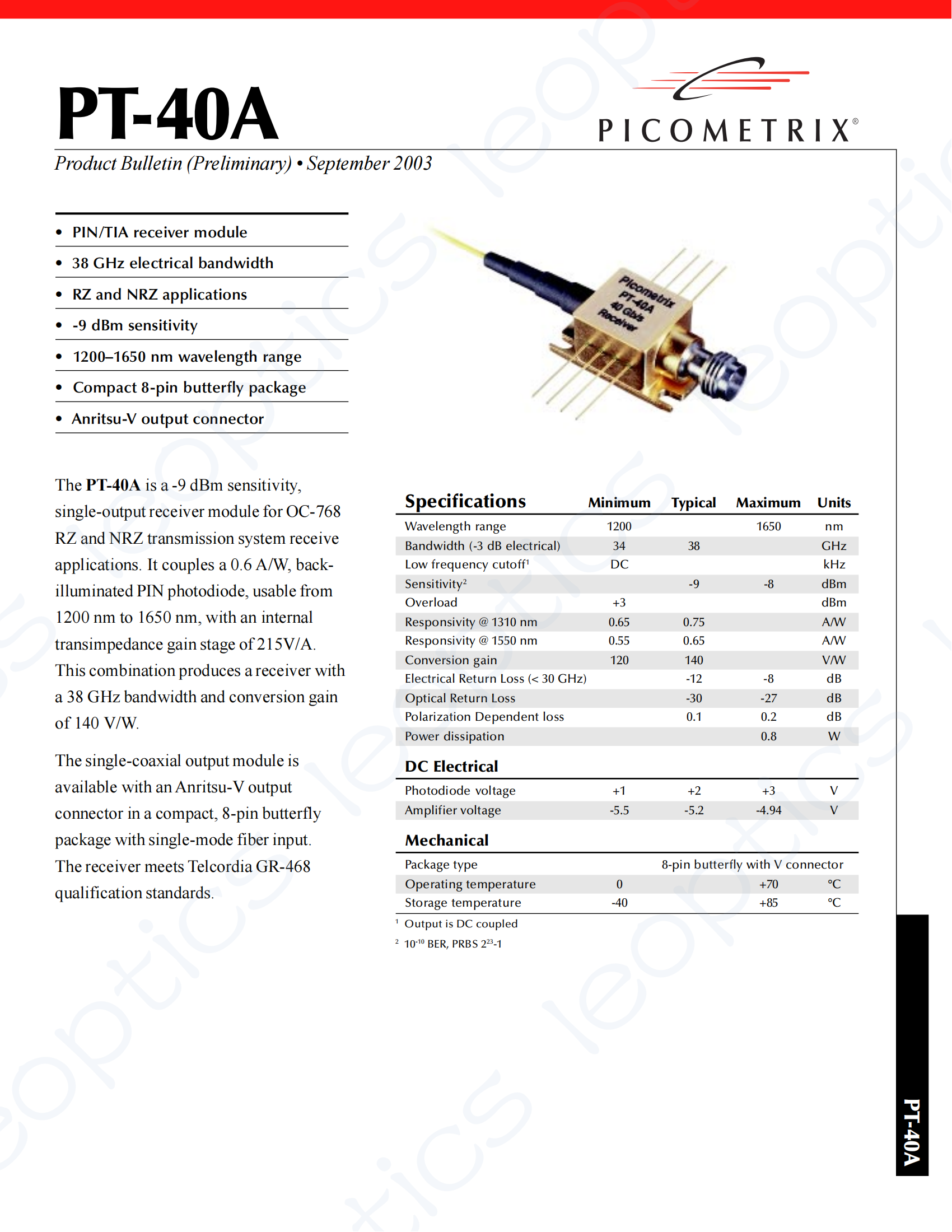

The PT-40A is a -9 dBm sensitivity, single-output receiver module for OC-768 RZ and NRZ transmission system
receive applications.
It couples a 0.6 A/W, back illuminated PIN photodiode, usable from 1200 nm to 1650 nm, with an internal transimpedance gain stage of 215V/A.
This combination produces a receiver with a 38 GHz bandwidth and conversion gain of 140 V/W.

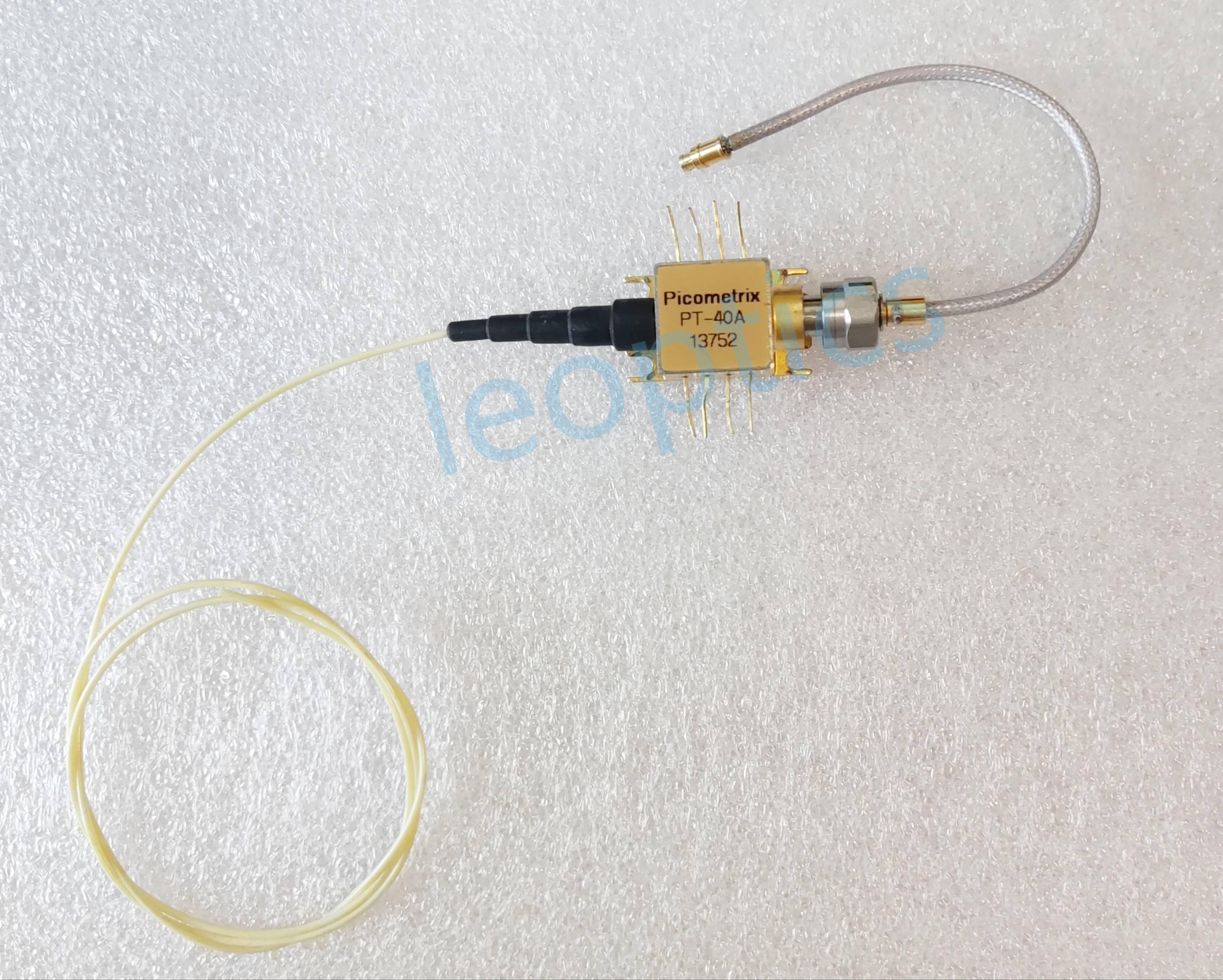

The single-coaxial output module is available with an Anritsu-V output connector in a compact, 8-pin butterfly package with single-mode fiber input.
The receiver meets Telcordia GR-468 qualification standards.
