100Gb/s DP-QPSK and PM-QPSK Broadband 8V LN Modulator Driver Amplifier OA3MHQM/4

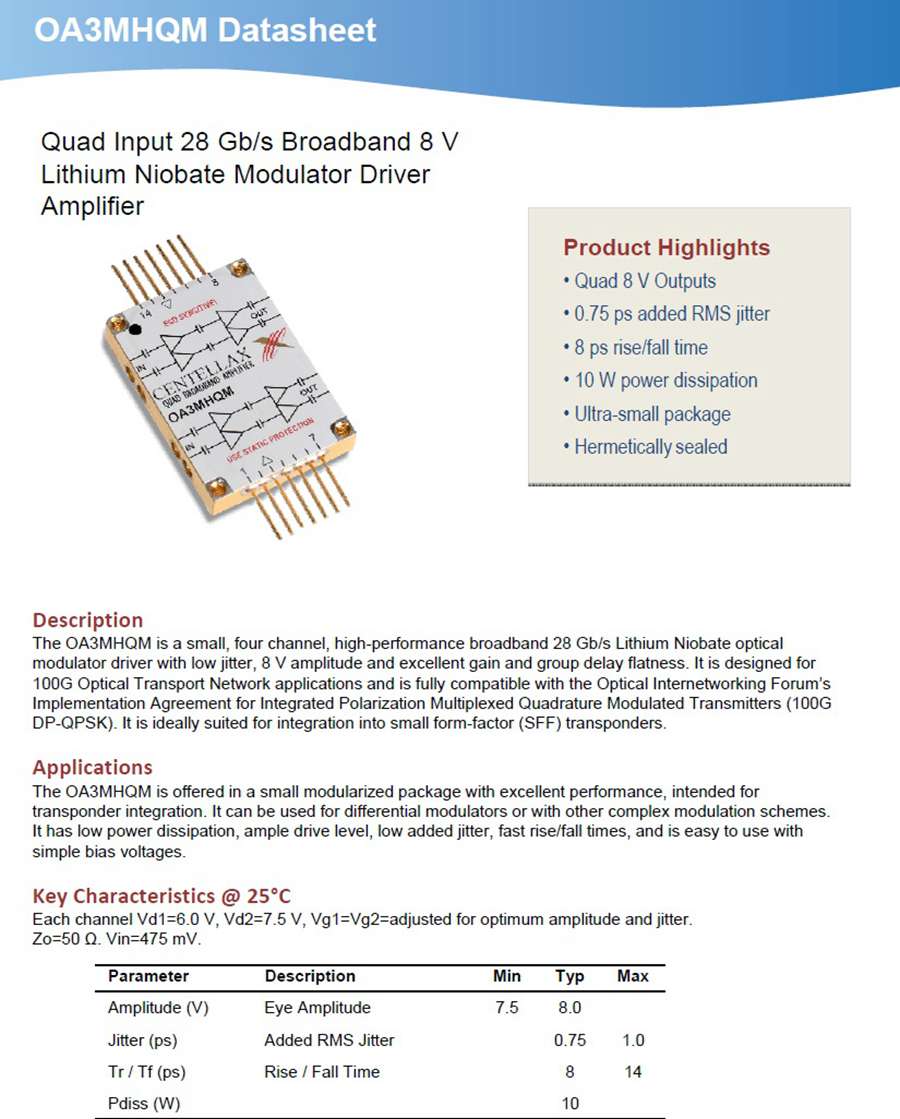

Description

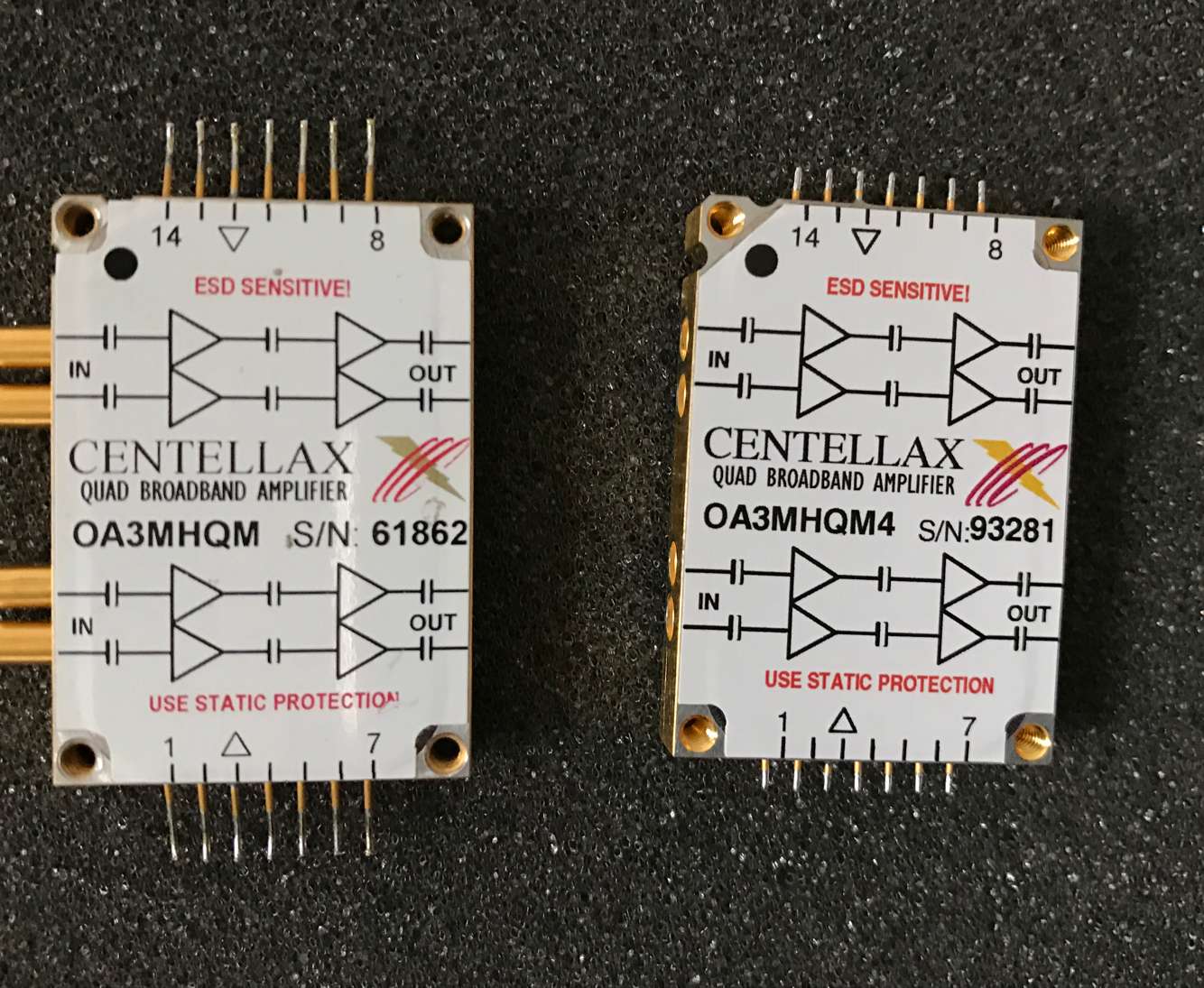

The OA3MHQM is a small, four channel, high-performance broadband 28 Gb/s Lithium Niobate

optical modulator driver with low jitter, 8 V amplitude and excellent gain and group delay flatness.

It is designed for 100G Optical Transport Network applications and is fully compatible with the

Optical Internetworking Forum’s Implementation Agreement for Integrated Polarization

Multiplexed Quadrature Modulated Transmitters (100G DP-QPSK).

It is ideally suited for integration into small form-factor (SFF) transponders.

Applications

The OA3MHQM is offered in a small modularized package with excellent performance, intended for

transponder integration. It can be used for differential modulators or with other complex modulation schemes.

It has low power dissipation, ample drive level, low added jitter, fast rise/fall times, and is easy to use with

simple bias voltages.
