TriQuint Quad Channel 100G Modulator Driver Chip Output 3V-9V TGA4949

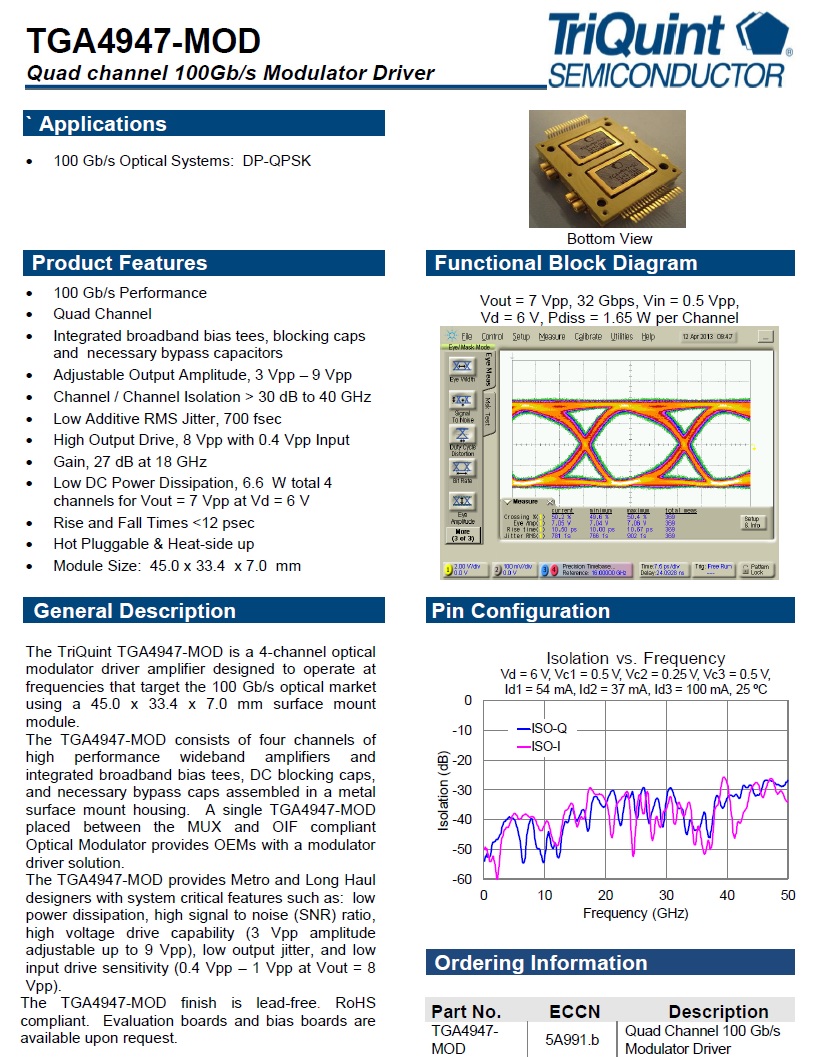

Please refer to the model TGA4947-MOD.

Product Features

· 100 Gb/s Performance
· Quad Channel
· Integrated broadband bias tees, blocking caps
  and necessary bypass capacitors
· Adjustable Output Amplitude, 3 Vpp – 9 Vpp
· Channel / Channel Isolation > 30 dB to 40 GHz
· Low Additive RMS Jitter, 700 fsec

· High Output Drive, 8 Vpp with 0.4 Vpp Input
· Gain, 27 dB at 18 GHz
· Low DC Power Dissipation, 6.6 W total 4
  channels for Vout = 7 Vpp at Vd = 6 V
· Rise and Fall Times <12 psec
· Hot Pluggable & Heat-side up
· Module Size: 45.0 x 33.4 x 7.0 mm
