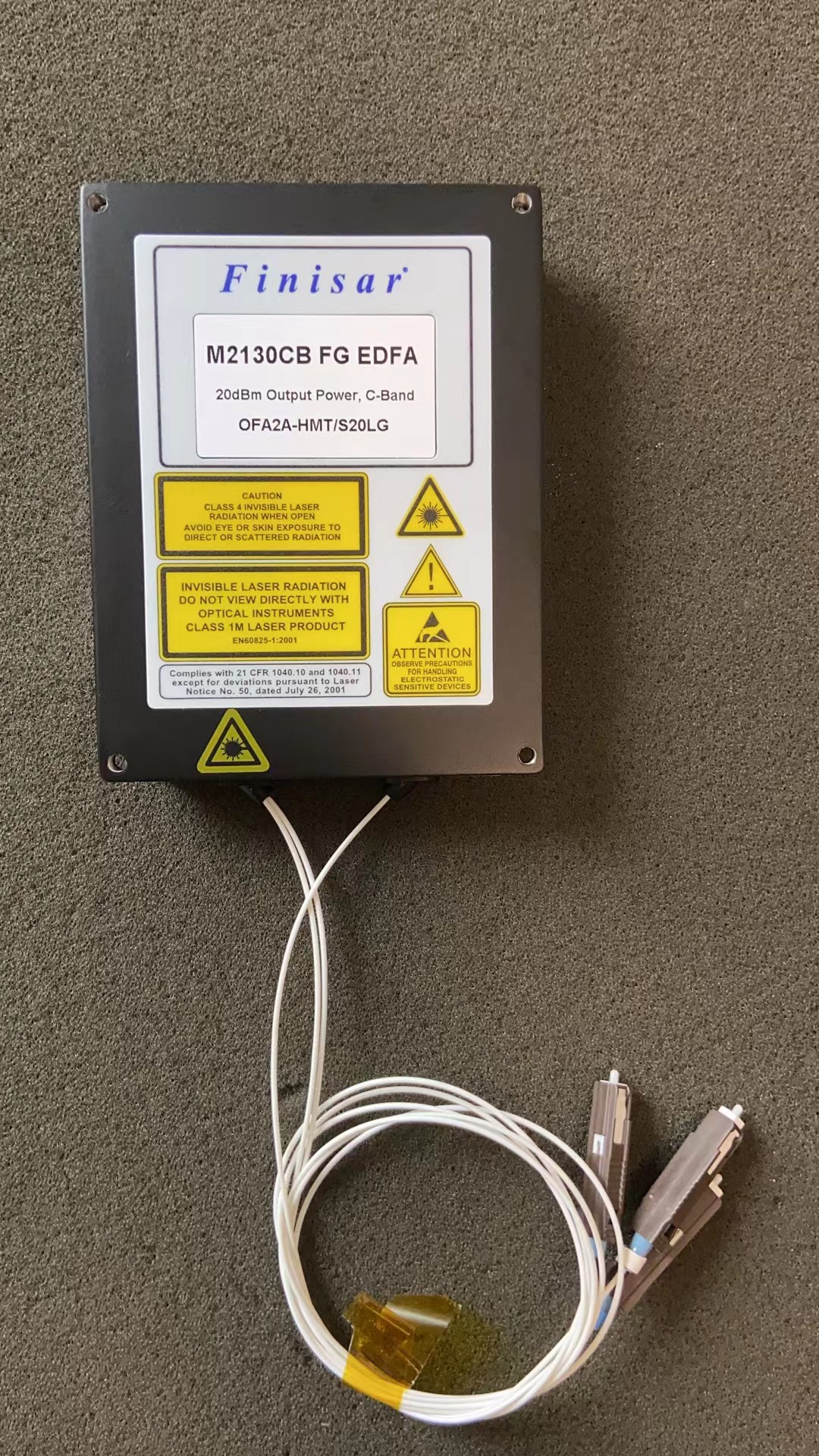

Finisar M2130CB FG EDFA 20dBm Output Power C Band OFA2A-HMT/S20LG
Finisar M2130CB FG EDFA 20dBm Output Power C Band OFA2A-HMT/S20LG
Finisar M2130CB FG EDFA 20dBm Output Power C Band OFA2A-HMT/S20LG
Overview
Finisar's 70x90 mm Fixed Gain (FG) EDFA product line supports a full range of C- or L-band
fixed gain WDM EDFAs, as well as narrow band, CWDM and single channel EDFAs. The
products support either cooled or uncooled pumps, thus allowing the optimal combination
of size, power consumption and performance to be achieved for each application.
The platform incorporates advanced control and monitoring functions, and provides
fast transient suppression for stable gain in all operating conditions. The FG EDFA can be
software-configured as a pre-amplifier, booster or inline amplifier, thus allowing a single
part-number to address different network functions.
These products are available in a wide variety of gain configurations targeting different
output powers. In addition, they can be configured with a VOA (Variable Optical Attenuator)
to more precisely maintain optical output power.
