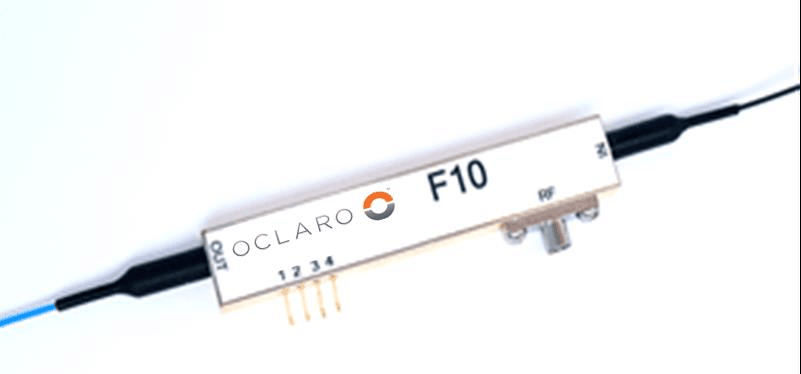

10–12.5 Gb/s Oclaro F10 MZ Intensity Modulator C and L-Band 792000860

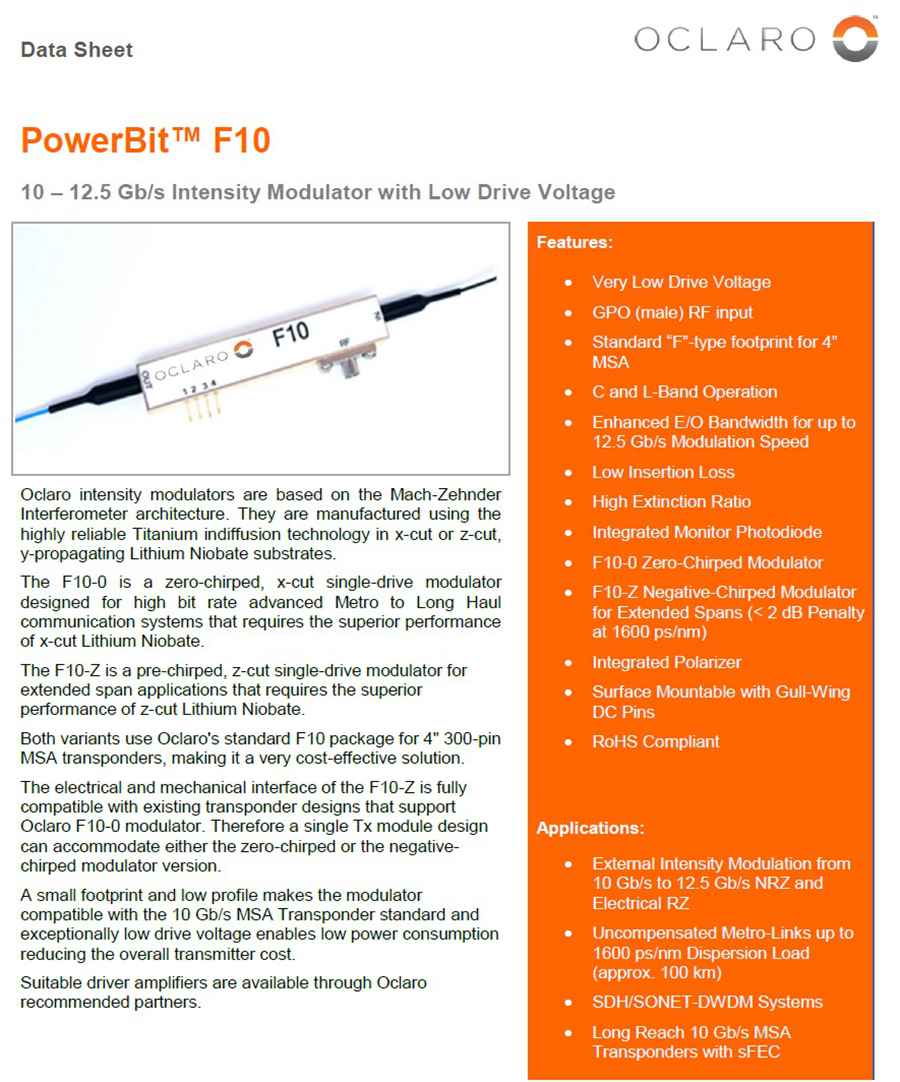

Oclaro intensity modulators are based on the Mach-Zehnder Interferometer architecture.

They are manufactured using the highly reliable Titanium indiffusion technology in x-cut or z-cut, y-propagating Lithium Niobate substrates.

The F10-0 is a zero-chirped, x-cut single-drive modulator designed for high bit rate advanced Metro to Long Haul communication systems that requires the superior performance of x-cut Lithium Niobate.

The F10-Z is a pre-chirped, z-cut single-drive modulator for extended span applications that requires the superior performance of z-cut Lithium Niobate.
