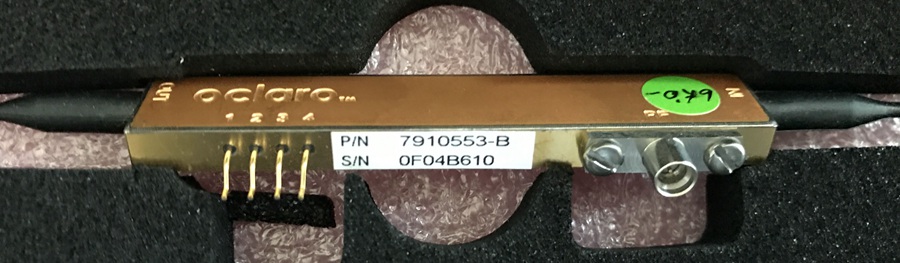

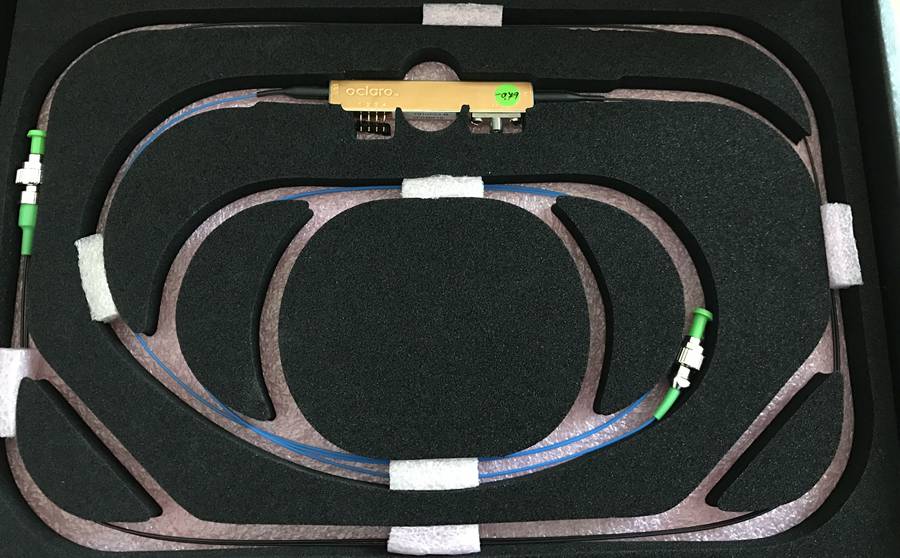

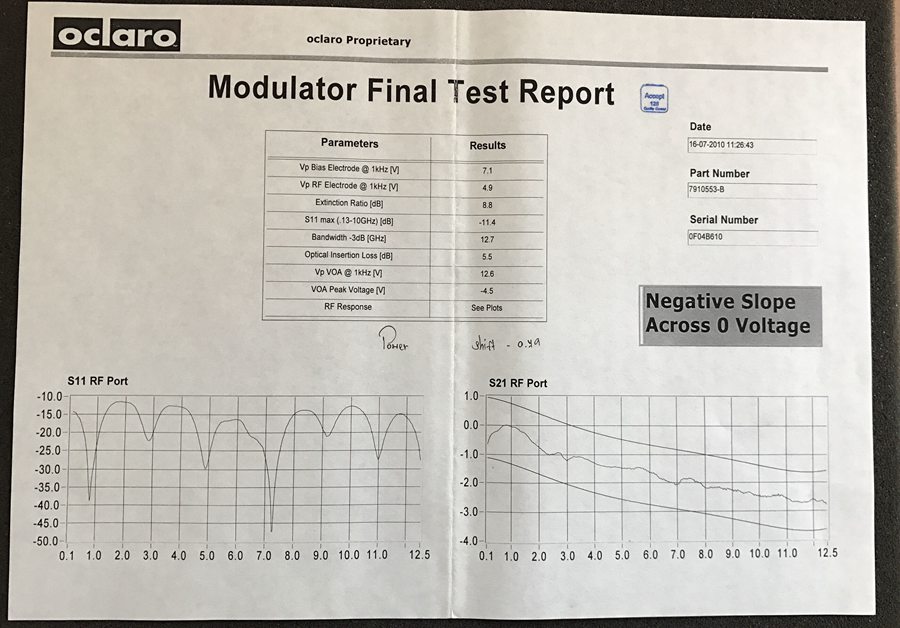

Oclaro F10 10–12.5 Gb/s MZ Intensity Modulator LN 7910553-B

Description:

Oclaro intensity modulators are based on the Mach-Zehnder Interferometer architecture.

They are manufactured using the highly reliable Titanium indiffusion technology in x-cut, y-propagating Lithium Niobate substrates.

This 10 Gb/s – 12.5 Gb/s Modulator is designed for high bit rate Long Haul communication systems that requires the superior performance of x-cut Lithium Niobate.

Exceptionally low drive voltage enables low power consumption, reducing the overall transmitter cost.

A small footprint and low profile makes the modulator compatible with the 10 Gb/s MSA Transponder standard.

A single Tx board design can accommodate either the zero-chirp or the fixed chirp modulator version.

A small footprint and low profile makes the modulator compatible with the 10 Gb/s MSA Transponder standard and exceptionally low drive voltage enables low power consumption reducing the overall transmitter cost.

Suitable driver amplifiers are available through Oclaro recommended partners.

Features:

Very Low Drive Voltage

GPO (male) RF input

Standard “F”-type footprint for 4” MSA

C and L-Band Operation

Enhanced E/O Bandwidth for up to 12.5 Gb/s Modulation Speed

Low Insertion Loss

High Extinction Ratio

Integrated Monitor Photodiode

F10-0 Zero-Chirped Modulator

F10-Z Negative-Chirped Modulator for Extended Spans (< 2 dB Penalty at 1600 ps/nm)

Integrated Polarizer

Surface Mountable with Gull-Wing DC Pins

RoHS Compliant

Applications:

External Intensity Modulation from 10 Gb/s to 12.5 Gb/s NRZ and Electrical RZ

Uncompensated Metro-Links up to 1600 ps/nm Dispersion Load (approx. 100 km)

SDH/SONET-DWDM Systems

Long Reach 10 Gb/s MSA Transponders with sFEC
