Leeaotech Multi-Channel C+L Band Tunable Laser Source Module 10-15.5dBm 1GHz 0.008nm Narrow Linewidth

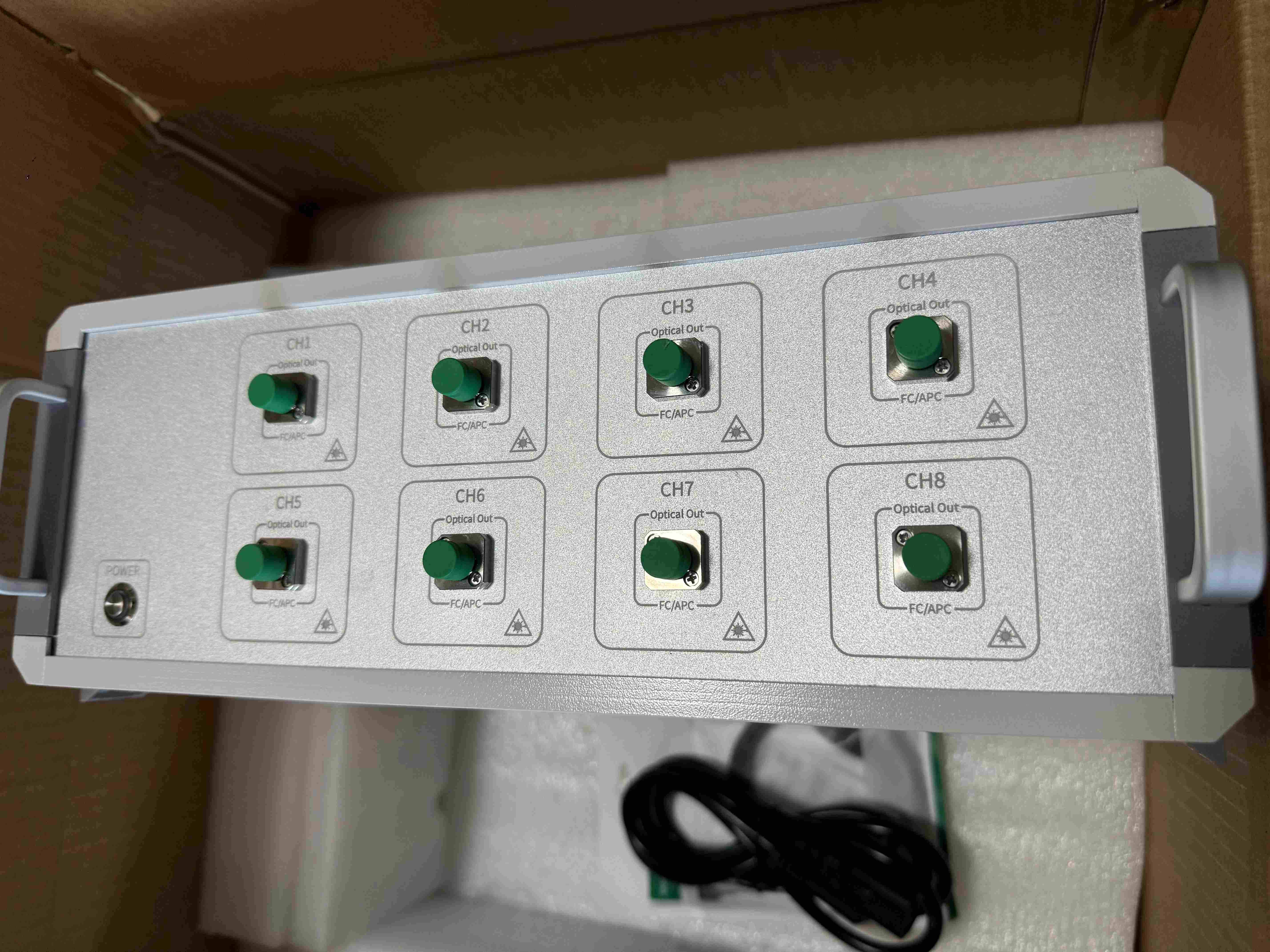

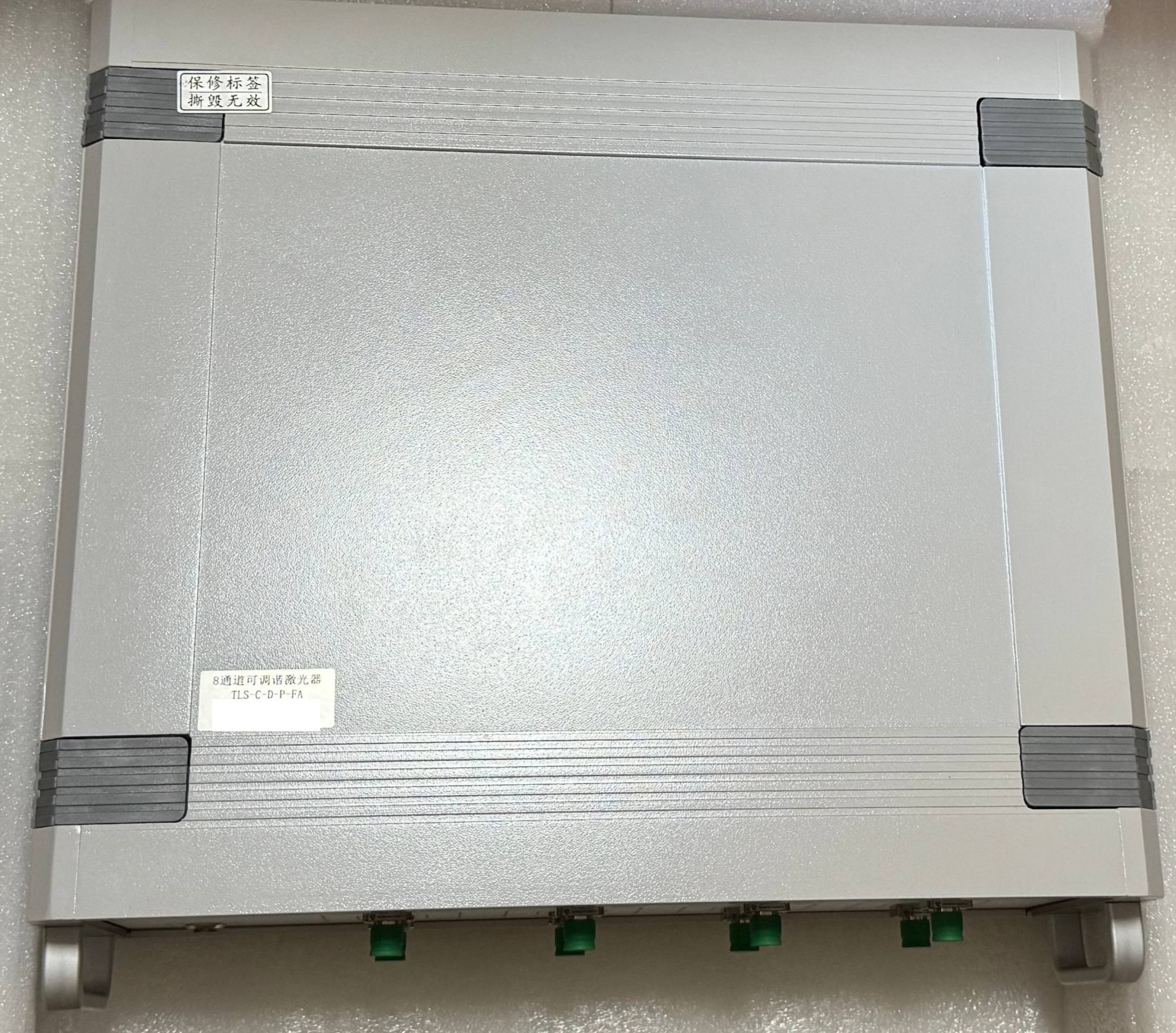

Leeaotech Multi-Channel Tunable Laser Module (C+L Band)

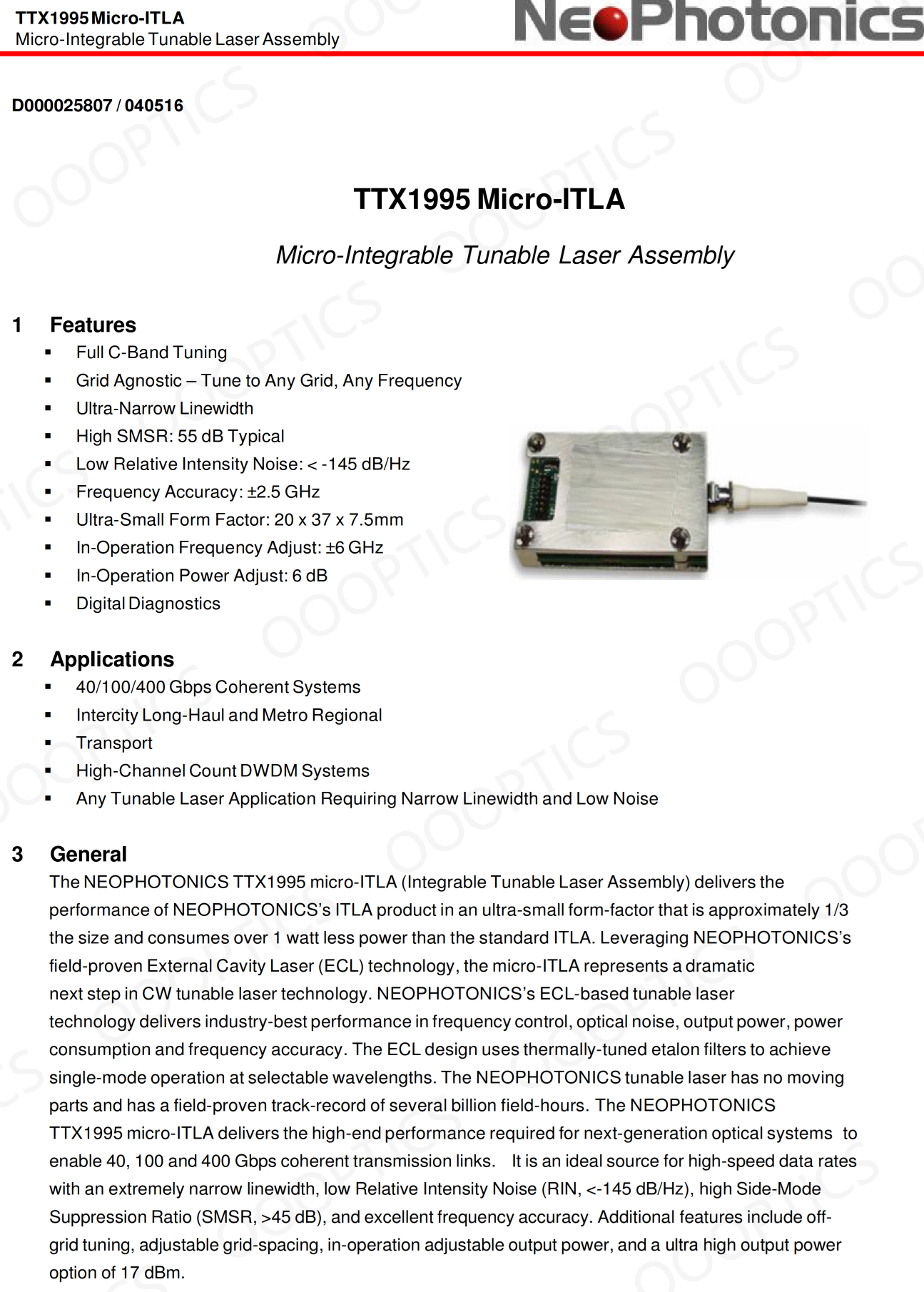

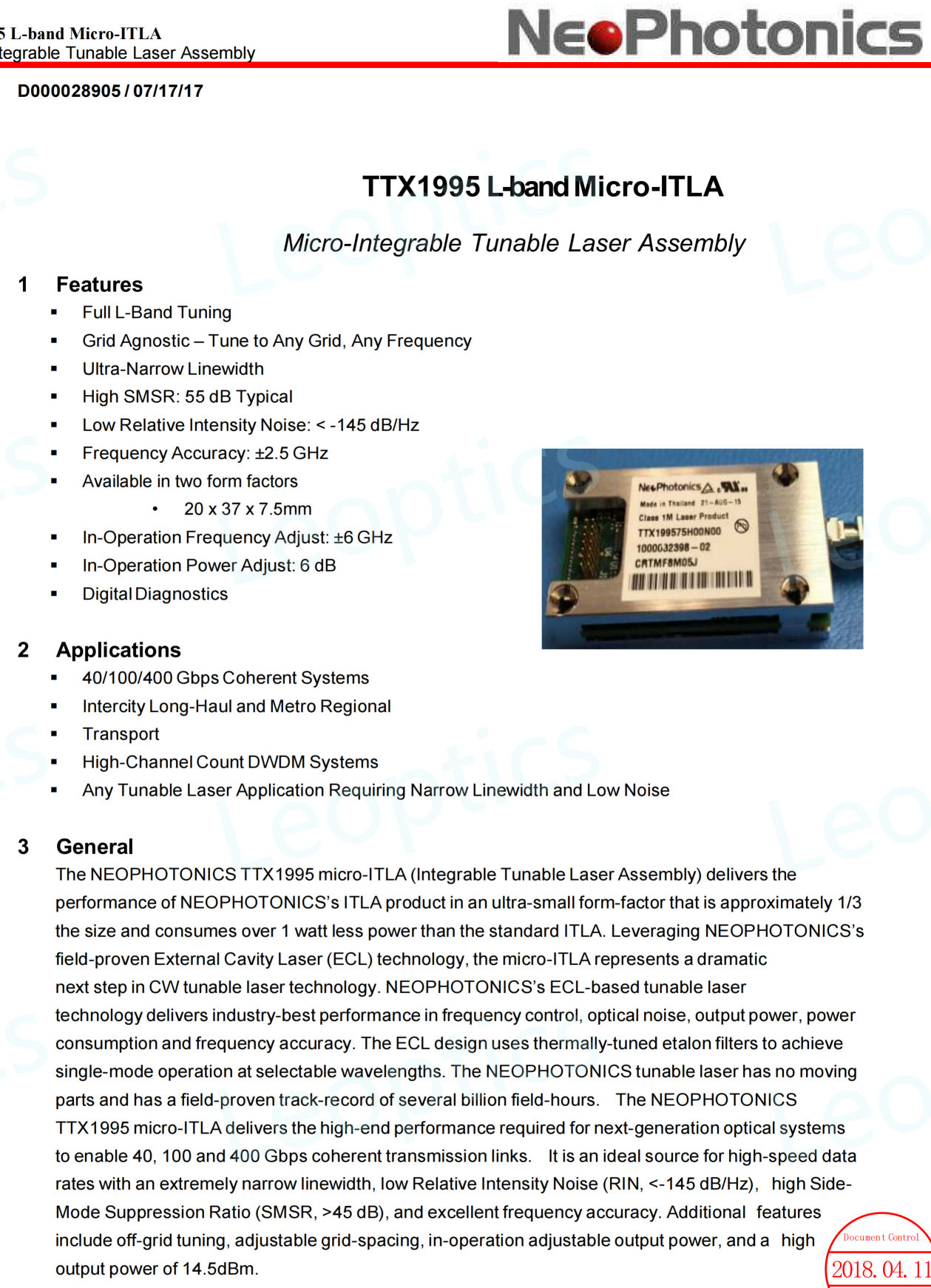

This multi-channel tunable laser module  is designed for precision optical applications. Its high-performance design references industry-standard products like the EMCORE / Neophotonics TTX1995 series ITLA, combining superior performance, flexible configuration, and reliable support .

This module supports flexible customization of 1 to 8 channels, each configurable for C-band or L-band operation. Key specifications include:

- Output Power: 10–15.5 dBm
- Wavelength Tuning Spacing: 1 GHz (~0.008 nm)
- Linewidth: 20 kHz
- Control Interfaces: USB, Ethernet (RS232 protocol)
- Band Coverage: C-band (~1528–1567 nm) or L-band (~1570–1612 nm)

Service & Support

-  Warranty: 1-year hardware warranty
-  Software/Hardware Support:  software provided
-  Customization: Channel count (1–8) and band combination available upon request
