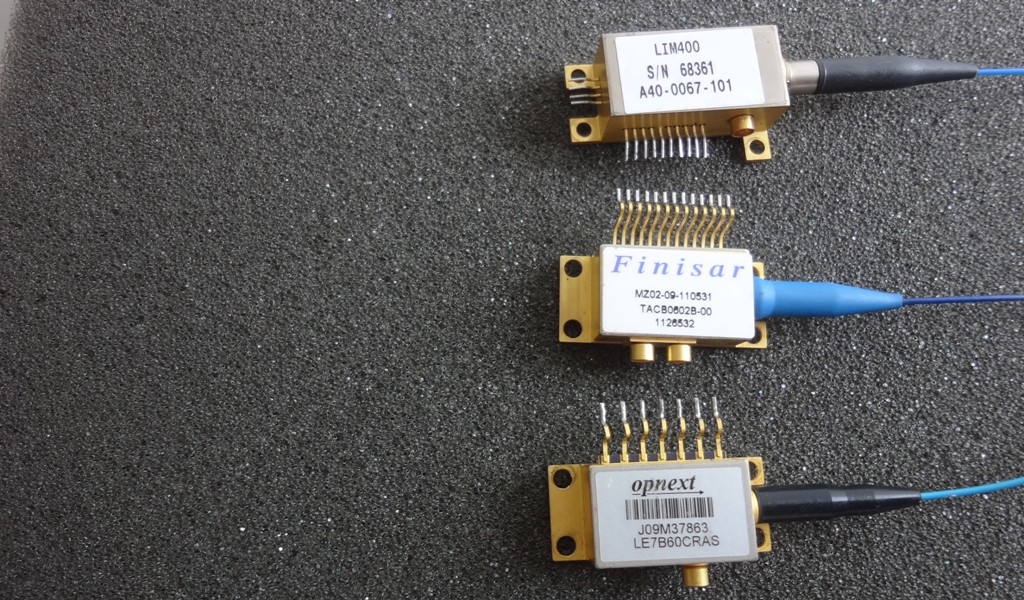

CyOptics LIM400 40Gb/s Transmitter Laser-Integrated Module Finisar Opnext

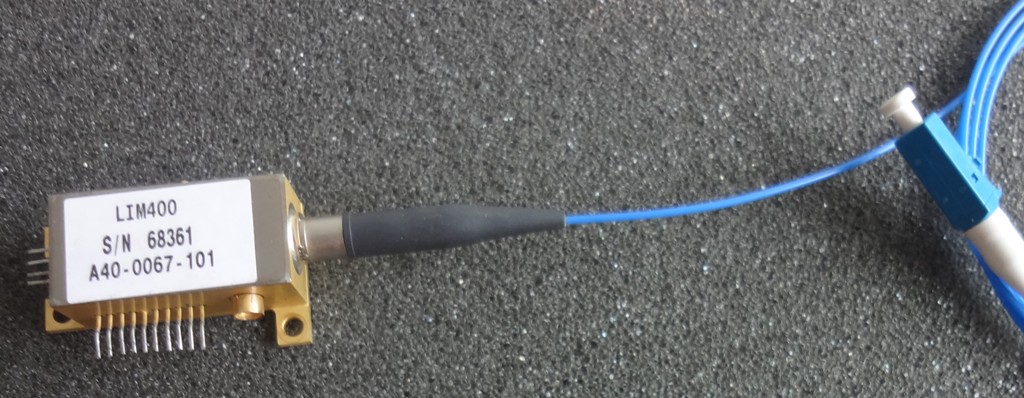

The CyOptics (formerly Apogee Photonics) LIM400 Laser-Integrated Module is a

compact, high-performance device used in 40Gb/s long-reach data transmission.

The LIM400 enables ITU and MSA compliance with a dispersion penalty of less than

1dB over 40ps/nm of fiber, and an end-of-life output power-exceeding 0dBm.

The LIM400 is ideal for both 2km VSR and 80km LR dispersion-compensated

applications CyOptics’ innovation has led to the reduction of size and power

requirements, enabling MSA-compliant transponders and increased board densities.

The LIM400 integrates both laser and modulator into a single package, thereby

eliminating a separate TEC. A proprietary internal-biasing technology permits direct

connection to the RF port of the EAM, eliminating the need for an external bias-tee.

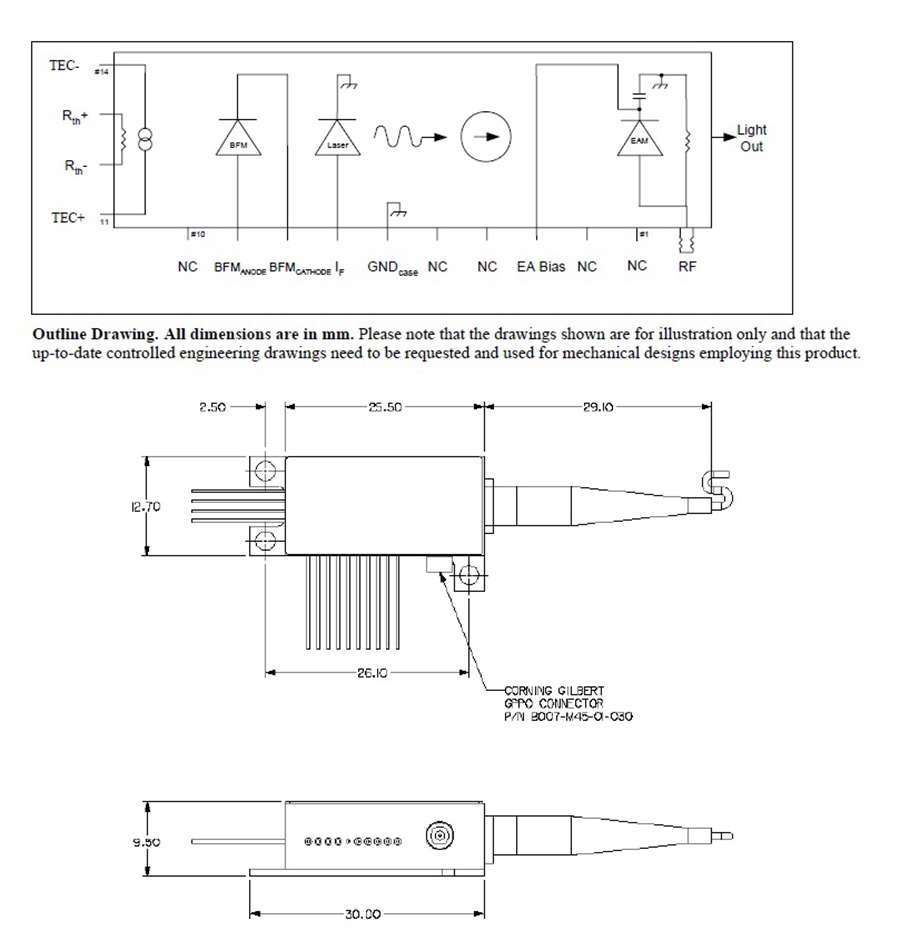

Lastly, the low-profile corner-mount design of the LIM400 allows additional board

space savings.

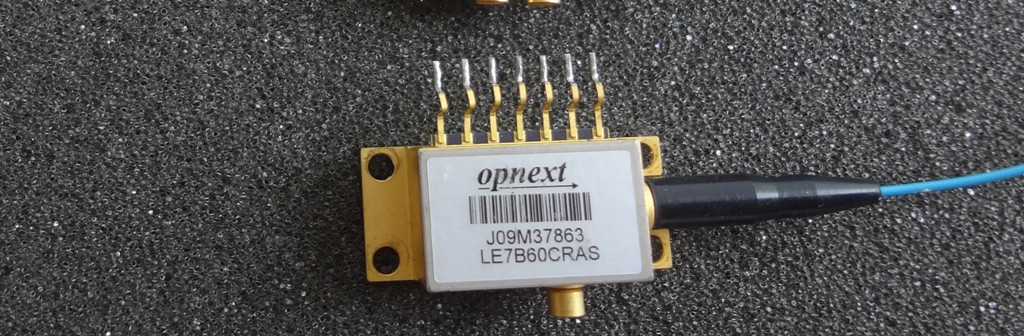

J09M37863

LIM400

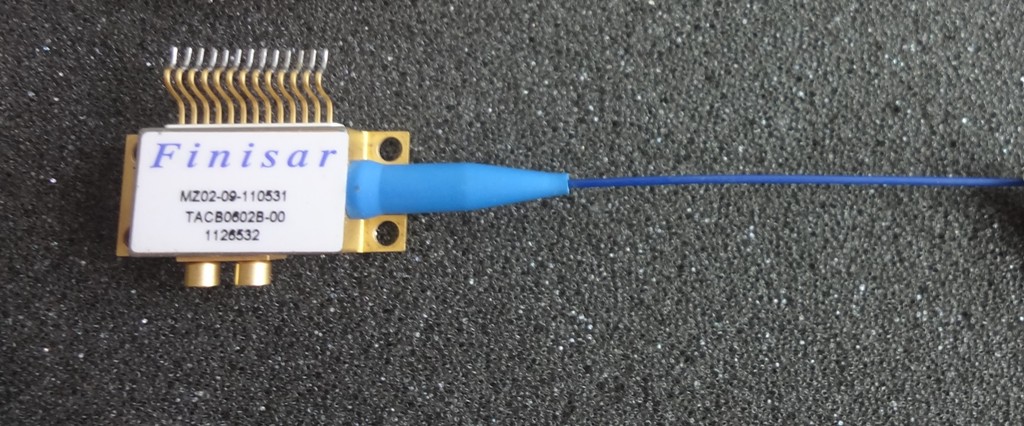

MZ02-09-110531
